BA3933

Features: 1) With 7.5V output for audio power supply, 5V output for microcontrollers, 5V output for radio 5 and 7.5V outputs for CD players, 9V output for motor drivers, the IC is best suited for CD radio cassette players.2) Precise power supply (5V ± 0.1V) can be obtained by using external refere...

product image

BA3933 Picture
See larger image
SeekIC No. : 004295527 Detail

BA3933: Features: 1) With 7.5V output for audio power supply, 5V output for microcontrollers, 5V output for radio 5 and 7.5V outputs for CD players, 9V output for motor drivers, the IC is best suited for CD...

BA3933 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
BA3933
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/10/30

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

1) With 7.5V output for audio power supply, 5V output
  for microcontrollers, 5V output for radio 5 and 7.5V
  outputs for CD players, 9V output for motor drivers,
  the IC is best suited for CD radio cassette players.
2) Precise power supply (5V ± 0.1V) can be obtained by
  using external reference voltage input (only AUDIO
  output has an internal reference voltage system).
3) Zero standby current. (Typ.)
4) Output current limit circuit protects the IC against short-circuiting damage.
5) Compact SIP-M12 package allows a large power dissipation (3W: no heat sink).
6) Thermal protection circuit prevents heat damage to the IC.


Application

CD radio cassette players, mini-component stereo audio systems


Pinout

Connection Diagram

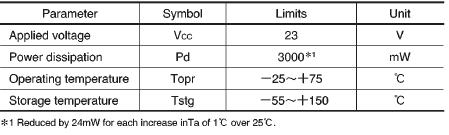

Specifications

Connection Diagram


Description

The BA3933 is a monolithic reference voltage power supply IC for use in CD radio cassette players.
