BA14741F

Features: 1) Built-in phase compensation circuit.2) Wide range of operating power supply voltages. ( ± 2 to ± 18V)3) Can be connected to other standard quad operational amplifiers.4) High gain and low noise.5) Compatible with model 741 operation amplifiers of other manufacturers.PinoutSpecificatio...

product image

BA14741F Picture
See larger image
SeekIC No. : 004295397 Detail

BA14741F: Features: 1) Built-in phase compensation circuit.2) Wide range of operating power supply voltages. ( ± 2 to ± 18V)3) Can be connected to other standard quad operational amplifiers.4) High gain and l...

BA14741F Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
BA14741F
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/7/15

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

1) Built-in phase compensation circuit.
2) Wide range of operating power supply voltages. ( ± 2 to ± 18V)
3) Can be connected to other standard quad operational amplifiers.
4) High gain and low noise.
5) Compatible with model 741 operation amplifiers of other manufacturers.


Pinout

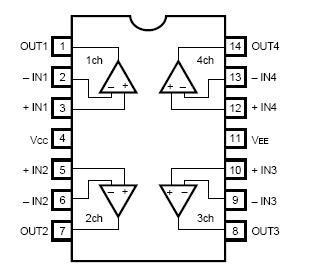

Connection Diagram


Specifications

Parameter Symbol Limits Unit
BA14741 BA14741F
Power supply voltage VCC 36 ( ± 18) 36 ( ± 18) V
Power dissipation Pd 950* 450* mW
Differential input voltage VID ± VCC ± VCC V
Common-mode input voltage VI 0.3 ~ VCC 0.3 ~ VCC V
Operating temperature Topr 40 ~ + 85 40 ~ + 85 °C
Storage temperature Tstg 55 ~ + 125 55 ~ + 125 °C








Description

The BA14741 and BA14741F are monolithic ICs with four operational amplifiers featuring internal phase compensation mounted on a single silicon chip. Either a dual or single power supply can be driven.
