B432

Features:

•  Low voltage operation (down to 1.25V)
•  Wide operating current..1mA to 100mA
•  Trimmed bandgap design ± 0.5%
•  Wide temperature range 0 to +105
•  Available in SOT-23-3, TO-92 , 8SOIC
•  Upgrade for TLV431A & Cross AS432


Application

•  Switching Power Supplies
•  Adjustable Power Supplies
•  Linear Regulators
•  Battery Powered Equipment
•  Monitors, TV, VCR
•  Instrumentation

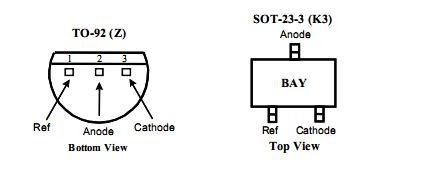

Pinout




Specifications

Parameter	Symbol	Maximum	Units
Cathode Voltage	Vz	18	V
Continuous Cathode Current	Iz	100	mA
Power Dissipation at TA - 25°C SOT-23-3 S0-8 TO-92	PD	200 750 775	mW
Thermal Resistance SOT-23-3 S0-8 TO-92	OJA	575 175 160	°C/W
Operating Junction Temperature Range	TJ	-40 to +150	°C
Storage Temperature Range	TSTG	-65 to +150	°C
Lead Temperature (Soldering) 10 seconds	TLEAD	300	°C
ESD Rating (Human Body Model)	TESD	2	kV

Description

The B432 is a three terminal adjustable shunt regulator with thermal stability of 50ppm/°C. The output voltage can be adjusted to any value from 1.25V (VREF) to 15V with two external resistors. The B432 is an ideal voltage reference in an isolated feedback circuit for 3.0V switch mode power supplies

The B432 shunt regulator is available with three voltage tolerances (0.5%, 1.0% and 2.0%) and three package options (SOT-23-3, TO-92, 8SOIC).  This allows the designer the opportunity to select the optimum combination of cost and performance for their application.
