B41795A8337Q000

Lead Style :
Packaging :
Product : General Purpose Electrolytic Capacitors
Capacitance : 330 uF
Voltage Rating : 63 Volts
Tolerance : - 10 %, + 30 %
Operating Temperature Range : - 55 C to + 125 C
Dimensions : 14 mm Dia. x 30 mm L
Termination Style : Soldering Star


Description

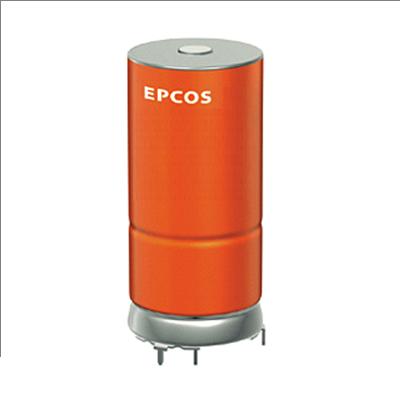

The B41795A8337Q000 ,Aluminum electrolytic capacitors Axial-lead and soldering star capacitors.

Features of the B41795A8337Q000 are:(1)Up to 150 °C operating temperature up to 55 V DC; (2)High ripple current capability; (3)High vibration resistance; (4)Long useful life; (5)Compact design; (6)Optimized CV value; (7)Shelf life up to 15 years at storage temperatures up to 40 °C. To ensure solderability, the capacitors should be built into the application within one year of delivery. After a total of two years' storage, the operating voltage must be applied for one hour to ensure the specified leakage current.

If you want to know more information such as the B41795A8337Q000,please download the datasheet in www.seekdatasheet.com .
