B32656S7224K500, US $ 2.98-4.55, B32656S7224K500 DataSheet download, circuit diagram from SeekIC.com

See larger image

SeekIC No. : 002966998 Detail

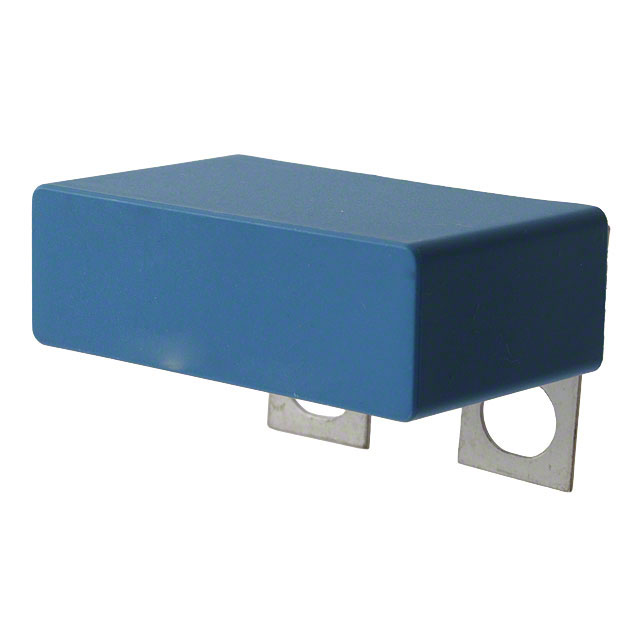

B32656S7224K500: CAP FILM 0.22UF 1.25KVDC SCREW

B32656S7224K500 Data Sheet

US $ 2.98~4.55 / Piece | Get Latest Price

Part Number:: B32656S7224K500
Mfg:
Supply Ability:: 5000

Price Break

Qty
0~1
1~10
10~100
100~500

Unit Price
$4.55
$4.04
$3.24
$2.98

Processing time
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/11/20

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

B32612 evaluate
Features: Very high pulse strengthApplication·TV (S-correction, flyback)·Electronic ballasts
B32612A0103J008 evaluate
US $.11 - .3 / Piece

CAP 10000PF 1000V METAL POLYPRO
B32612A0104J008 evaluate
US $.18 - .5 / Piece

CAP .10UF 1000V METAL POLYPRO

Product Details

Quick Details

Series:	B32656S	Manufacturer:	EPCOS Inc
Capacitance:	0.22µF	Voltage Rating - AC:	500V
Voltage Rating - DC:	1250V (1.25kV)	Dielectric Material:	Polypropylene, Metallized
Tolerance:	±10%	ESR (Equivalent Series Resistance):	-
Operating Temperature:	-55°C ~ 110°C	Mounting Type:	Chassis Mount
Package / Case:	Rectangular Box	Size / Dimension:	1.654" L x 0.551" W (42.00mm x 14.00mm)
Height - Seated (Max):	0.984" (25.00mm)	Mounting Style :	Stud
Termination:	Screw Terminals	Lead Spacing:	1.476" (37.50mm)
Features:	AC and Pulse	Applications:	-

Description

ESR (Equivalent Series Resistance): -
Applications: -
Manufacturer: EPCOS Inc
Tolerance: ±10%
Capacitance: 0.22µF
Packaging: Bulk
Dielectric Material: Polypropylene, Metallized
Features: AC and Pulse
Voltage Rating - AC: 500V
Operating Temperature: -55°C ~ 110°C
Voltage Rating - DC: 1250V (1.25kV)
Height - Seated (Max): 0.984" (25.00mm)
Size / Dimension: 1.654" L x 0.551" W (42.00mm x 14.00mm)
Lead Spacing: 1.476" (37.50mm)
Mounting Type: Chassis Mount
Package / Case: Rectangular Box
Series: B32656S
Termination: Screw Terminals

Parameters:

Technical/Catalog Information	B32656S7224K500
Vendor	EPCOS Inc
Category	Capacitors
Capacitance	0.22F
Voltage - Rated	1250V (1.25 kV)
Tolerance	±10%
Dielectric Material	Metallized Polypropylene Film
Package / Case	Radial
Packaging	Bulk
Maximum Temperature	-55°C ~ 105°C
Lead Spacing	1.476" (37.50mm)
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	-
Mounting Type	Through Hole
Features	High Pulse Strength
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	B32656S7224K500 B32656S7224K500 495 3954 ND 4953954ND 495-3954
