B29AP, US $ 3.25-4.58 , NKK Switches, B29AP DataSheet download, circuit diagram from SeekIC.com

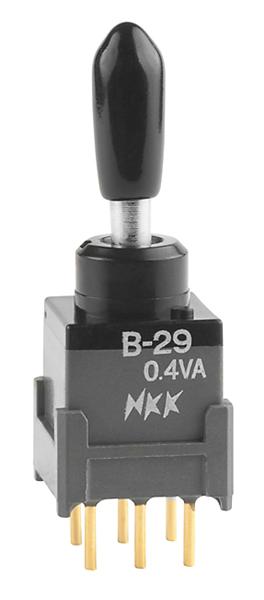

See larger image

SeekIC No. : 002664265 Detail

B29AP: Toggle Switches DPDT ON-OFF-(ON)

B29AP Data Sheet

US $ 3.25~4.58 / Piece | Get Latest Price

Part Number:: B29AP
Mfg:: NKK Switches
Supply Ability:: 5000

Price Break

Qty
0~1
1~25
25~50
50~100

Unit Price
$4.58
$3.83
$3.44
$3.25

Processing time
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/9/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

B29AB evaluate
US $3.07 - 3.75 / Piece

Toggle Switches
B29AH evaluate
US $4.87 - 4.87 / Piece

SWITCH TOGGLE DPDT BAT R/A
B29AH-RO evaluate
US $2.89 - 4.02 / Piece

Toggle Switches ON-OFF-(ON) DPDT

Product Details

Quick Details

Contact Form :	DPDT	Switch Function :	ON - OFF - (ON)
Current Rating :	0.1 A	Voltage Rating AC :	28 V
Voltage Rating DC :	28 V	Power Rating :	0.4 Volt-Amp
Termination Style :	Solder Terminals	Mounting Style :	Through Hole
Terminal Seal :	Epoxy	Contact Plating :	Gold
Illumination :	Not Illuminated

Description

Voltage Rating DC : 28 V
Mounting Style : Through Hole
Terminal Seal : Epoxy
Illumination : Not Illuminated
Contact Plating : Gold
Contact Form : DPDT
Switch Function : ON - OFF - (ON)
Power Rating : 0.4 Volt-Amp
Termination Style : Solder Terminals
Current Rating : 0.1 A
Voltage Rating AC : 28 V

Parameters:

Technical/Catalog Information	B29AP
Vendor	NKK Switches of America Inc
Category	Switches
Circuit	DPDT
Switch Function	On-Off-Mom
Mounting Type	Through Hole
Actuator Length	10.00mm
Actuator Type	Standard Round
Bushing Thread	Unthreaded
Contact Rating @ Voltage	0.4VA @ 28VAC/DC
Illumination	Non-Illuminated
Termination Style	PC Pin
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	B29AP B29AP
