B15AB-RO, US $ 2.11-2.71 , NKK Switches, B15AB-RO DataSheet download, circuit diagram from SeekIC.com

See larger image

SeekIC No. : 002654815 Detail

B15AB-RO: Toggle Switches SPDT .394 BAT STRAIGHT

B15AB-RO Data Sheet

US $ 2.11~2.71 / Piece | Get Latest Price

Part Number:: B15AB-RO
Mfg:: NKK Switches
Supply Ability:: 5000

Price Break

Qty
0~1
1~25
25~50
50~100

Unit Price
$2.71
$2.57
$2.36
$2.11

Processing time
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/11/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

B15A45VIC evaluate
Features: 1. Average Output Rectified Current : IO=15A (Tc=105􁴱).2.􁴌Repetitive P...
B15AB evaluate
US $3.23 - 3.23 / Piece

SW TOGGLE SPDT .4VA STR BRKT ESD

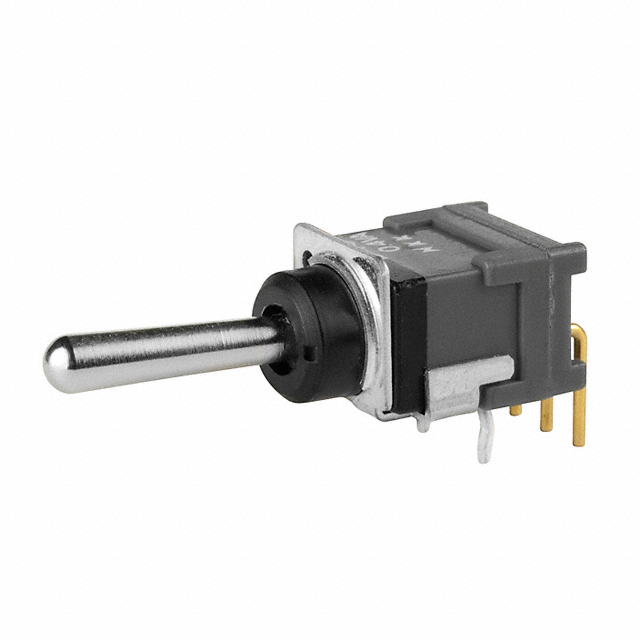

B15AH evaluate
US $1.44 - 2.76 / Piece

SWITCH TOGGLE SPDT BAT R/A

Product Details

Quick Details

Contact Form :	SPDT	Switch Function :	ON - NONE - (ON)
Current Rating :	0.1 A	Voltage Rating AC :	28 V
Voltage Rating DC :	28 V	Power Rating :	0.4 Volt-Amp
Termination Style :	Straight PC with Bracket	Mounting Style :	Through Hole
Terminal Seal :	Epoxy	Contact Plating :	Gold
Illumination :	Not Illuminated

Description

Contact Form : SPDT
Voltage Rating DC : 28 V
Mounting Style : Through Hole
Terminal Seal : Epoxy
Illumination : Not Illuminated
Contact Plating : Gold
Switch Function : ON - NONE - (ON)
Power Rating : 0.4 Volt-Amp
Current Rating : 0.1 A
Voltage Rating AC : 28 V
Termination Style : Straight PC with Bracket

Parameters:

Technical/Catalog Information	B15AB-RO
Vendor	NKK Switches of America Inc
Category	Switches
Circuit	SPDT
Switch Function	On-Mom
Mounting Type	Through Hole
Actuator Length	10.00mm
Actuator Type	Standard Round
Bushing Thread	Unthreaded
Contact Rating @ Voltage	0.4VA @ 28VAC/DC
Illumination	Non-Illuminated
Termination Style	PC Pin
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	B15AB RO B15ABRO
