Am79C974

Features: ` Compliant to ANSI standards X3.131 1986 (SCSI-1) and X3.131 199X (SCSI-2)` Fast 8-bit SCSI-2 10 Mbyte/s synchronous or 7 Mbyte/s asynchronous data transfer rate`SCSI specific Bus Mastering DMA engine (32-bit address/data)` 96-byte DMA FIFO for low bus latency`On-chip state machine to...

product image

Am79C974 Picture
SeekIC No. : 004284393 Detail

Am79C974: Features: ` Compliant to ANSI standards X3.131 1986 (SCSI-1) and X3.131 199X (SCSI-2)` Fast 8-bit SCSI-2 10 Mbyte/s synchronous or 7 Mbyte/s asynchronous data transfer rate`SCSI specific Bus Maste...

floor Price/Ceiling Price

Part Number:
Am79C974
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/12

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Compliant to ANSI standards X3.131 1986 (SCSI-1) and X3.131 199X (SCSI-2)
` Fast 8-bit SCSI-2 10 Mbyte/s synchronous or 7 Mbyte/s asynchronous data transfer rate
`SCSI specific Bus Mastering DMA engine (32-bit address/data)
` 96-byte DMA FIFO for low bus latency
`On-chip state machine to control the SCSI sequences in hardware
` Integrated industry standard Fast SCSI-2 core
` Single-Ended 48 mA outputs to drive the SCSI bus directly
` Support for Scatter-Gather DMA data transfers
`Hooks in silicon and software to enable disk drive spin down for power savings




Pinout

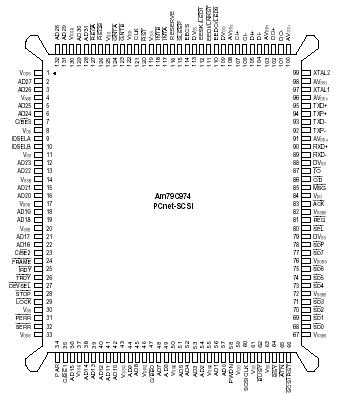

  Connection Diagram


Specifications

Storage Temperature  . . . . . . . . . . . . . . . . . . . . . . . . . . 65 to +150
Ambient Temperature
Under Bias . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55 to +125
Supply Voltage to AVSS or VSSB or VSSBS or DVSS
(AVDD, VDD, VDDB, VDDBS, DVDD)  . . . . . . . . . . . . . . . . . . 0.3 V to +6.0 V



Description

The PCnet-SCSI combination Ethernet and 8-bit Fast SCSI controller Am79C974 with a 32-bit PCI bus interface is a highly integrated Ethernet-Fast SCSI system solution designed to address high-performance system application requirements. This single-chip is a flexible bus-mastering device that can be used in many applications, including network- and SCSI-ready PCs, printers, fax modems, and bridge/router designs. The bus-master architecture provides high data throughput in the system and low CPU and system bus utilization. The PCnet-SCSI controller is fabricated with AMD's advanced low-power CMOS process to provide low operating and standby current for power sensitive applications.

The PCnet-SCSI is part of AMD's PCI product family of plug-in and software compatible SCSI and Ethernet controllers. Am79C974 compatibility ensures a low cost system upgrade path and lower motherboard manufacturing costs.
