Am29LV116M

PinoutSpecificationsStorage TemperaturePlastic Packages . . . . . . . . . . .. 55°C to +150°CAmbient Temperaturewith Power Applied . . . . . . . . . 55°C to +125°CVoltage with Respect to GroundVCC (Note 1) . . . . . . . . . . . . . . . . .0.5 V to +4.0 VA9, OE#, and RESET# (Note 2) . . . . . . . ....

product image

Am29LV116M Picture
SeekIC No. : 004282346 Detail

Am29LV116M: PinoutSpecificationsStorage TemperaturePlastic Packages . . . . . . . . . . .. 55°C to +150°CAmbient Temperaturewith Power Applied . . . . . . . . . 55°C to +125°CVoltage with Respect to GroundVCC (...

floor Price/Ceiling Price

Part Number:
Am29LV116M
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Pinout

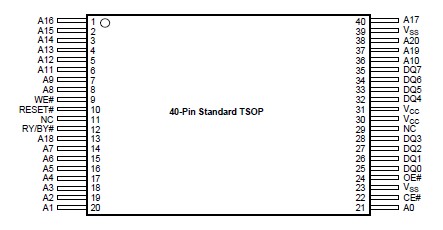

  Connection Diagram


Specifications

Storage Temperature
Plastic Packages . . . . . . . . . . .. 55°C to +150°C
Ambient Temperature
with Power Applied  . . . . . . . . . 55°C to +125°C
Voltage with Respect to Ground
VCC (Note 1) . . . . . . . . . . . . . . . . .0.5 V to +4.0 V
A9, OE#, and
RESET# (Note 2)  . . . . . . . . . .. . .0.5 V to +12.5 V
All other pins (Note 1) . . . . . . 0.5 V to VCC+0.5 V
Output Short Circuit Current (Note 3)  . . . .  200 mA



Description

The Am29LV116M is a 16 Mbit, 3.0 Volt-only Flashmemory organized as 2,097,152 bytes. The device isoffered in a 40-pin TSOP package. The byte-wide (x8)data appears on DQ7DQ0. All read, program, anderase operations are accomplished using only a singlepower supply. The device can also be programmed instandard EPROM programmers.

The standard device offers access times of 70, 90, and120 ns, allowing high speed microprocessors tooperate without wait states. To eliminate bus conten-tion Am29LV116M has separate chip enable (CE#), writeenable (WE#) and output enable (OE#) controls.

The device requires only a single 3.0 volt power sup-ply for both read and write functions. Internally gener-ated and regulated voltages are provided for theprogram and erase operations.

Am29LV116M is entirely command set compatible with theJEDEC single-power-supply Flash standard. Com-mands are written to the command register using stan-dard microprocessor write timings. Register contentsserve as input to an internal state-machine that con-trols the erase and programming circuitry. Write cyclesalso internally latch addresses and data needed for theprogramming and erase operations. Reading data outof the device is similar to reading from other Flash orEPROM devices.
