Am29LV102BB-70EC

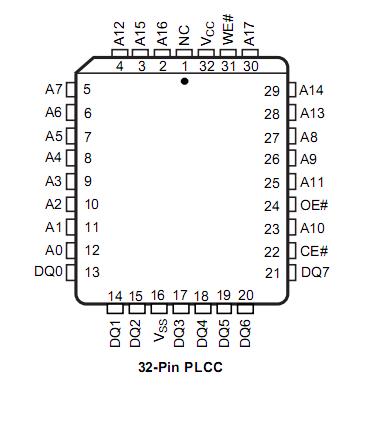

Pinout




Description

The Am29LV102BB-70EC is a single power supply, 2 Mbit, 3.0 Volt-only Flash memory device organized as 262,144 bytes. The data appears on DQ0-DQ7. The device is available in 32-pin PLCC and 32-pin TSOP packages. All read, erase, and program operations are accomplished using only a single power supply. The device can also be programmed in standard EPROM programmers.

Am29LV102BB-70EC offers access times of 55, 70, 90, and 120ns allowing high speed microprocessors to operate without wait states. To eliminate bus contention, the device has separate control pins-chip enable (CE#), write enable (WE#), and output enable (OE#)-to control normal read and write operations.
