Am29LV001BB-70EC

Features:

Hardware method of locking a sector to prevent any program or erase operations within that sector
Sectors can be locked in-system or via programming equipment
Temporary Sector Unprotect feature allows code changes in previously locked sectors

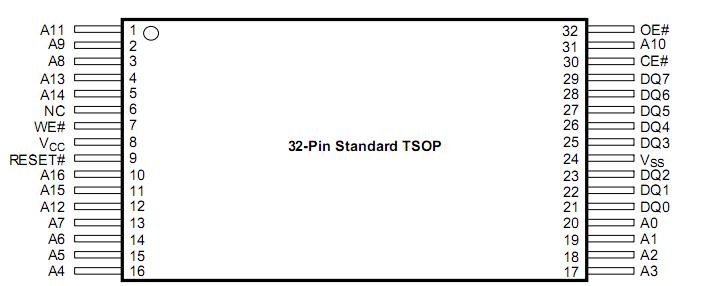

Pinout




Specifications

Storage Temperature
Plastic Packages . . . . . . . . . .  . . . . .  . . . . . . .. .. . 65°C to +150°C
Ambient Temperature
with Power Applied. . . . . . . . . . . .  . . . . . . . . . . . . 65°C to +125°C
Voltage with Respect to Ground
All pins except A9, OE# and RESET# (Note 1)  . .  0.5 V to VCC+0.5 V
VCC (Note 1). . . . . . . . . . . . . . .  . . . . . . . . . . . . . .. .. .0.5 V to +3.6 V
A9, OE#, and RESET# (Note 2)  . .  . . . . . . . . . . . . . .0.5 V to +12.5 V
Output Short Circuit Current (Note 3)  . . . . . . . . . . . . .  . . .. . .  200 mA


Description

The Am29LV001BB-70EC is a 1 Mbit, 3.0 Volt-only Flash memory device organized as 131,072 bytes. The Am29LV001B has a boot sector architecture.

The device is offered in 32-pin PLCC and 32-pin TSOP packages. The byte-wide (x8) data appears on DQ7DQ0. All read, erase, and program operations are accomplished using only a single power supply. The device can also be programmed in standard EPROM programmers.

The standard Am29LV001B offers access times of 45, 55, 70, and 90 ns, allowing high speed microprocessors to operate without wait states. To eliminate bus contention, Am29LV001BB-70EC has separate chip enable (CE#), write enable (WE#) and output enable (OE#) controls.
