Am29F016

5.0 Volt ± 10% for read and write operations
- Minimizes system level power requirements
Compatible with JEDEC-standards
- Pinout and software compatible withsingle-power supply Flash
- Superior inadvertent write protection

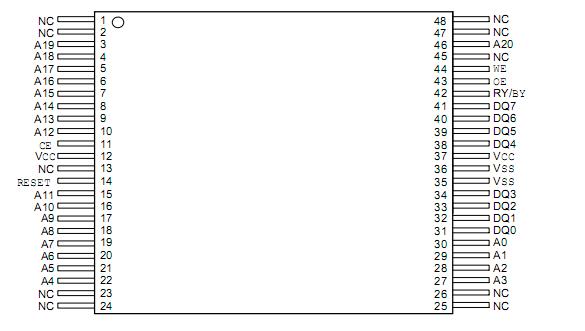

48-pin TSOP
44-pin SO
Minimum 100,000 write/erase cycles guaranteed
High performance
- 70 ns maximum access time
Sector erase architecture
- Uniform sectors of 64 Kbytes each
- Any combination of sectors can be erased.Also supports full chip erase
Group sector protection
- Hardware method that disables any combination of sector groups from write or erase operations
(a sector group consists of 4 adjacent sectors of 64 Kbytes each)
Embedded Erase Algorithms
- Automatically pre-programs and erases the chip or any sector
Embedded Program Algorithms
- Automatically programs and verifies data atspecified address
Data =Polling and Toggle Bit feature fordetection of program or erase cyclecompletion
Ready/ Busy )output (RY/BY )
- Hardware method for detection of program or erase cycle completion
Erase Suspend/Resume
- Supports reading or programming data to a sector not being erasedn Low power consumption
- 25 mA typical active read current
- 30 mA typical program/erase current
Enhanced power management for standby mode
-<1 µA typical standby current
- Standard access time from standby mode
Hardware RESET pin
- Resets internal state machine to the read mode

The Am29F016 is a 16 Mbit, 5.0 Volt-only Flash memoryorganized as 2 Megabytes of 8 bits each. The 2 Mbytesof data is divided into 32 sectors of 64 Kbytes for flexibleerase capability. The 8 bits of data appear on DQ0DQ7.The Am29F016 is offered in 48pin TSOP and 44-pin SOpackages. This device is designed to be programmedin-system with the standard system 5.0 Volt VCCsupply.12.0 Volt VPP is not required for program or eraseoperations. The device can also be reprogrammed instandard EPROM programmers.

The standard Am29F016 offers access times of 70ns, 90 ns, 120 ns, and 150 ns, allowing high-speedmicroprocessors to operate without wait states. Toeliminate bus contention, the device has separatechip enable (CE), write enable (WE), and outputenable (OE) controls.

The Am29F016 is entirely command set compatiblewith the JEDEC single-power supply Flash standard.Commands are written to the command register usingstandard microprocessor write timings. Registercontents serve as input to an internal state-machinethat controls the erase and programming circuitry.Write cycles also internally latch addresses and dataneeded for the programmingand erase operations.Reading data out of the device is similar to readingfrom 12.0 Volt Flash or EPROM devices.

The Am29F016 is programmed by executing the programcommand sequence. This will invoke the Embed
