Am29DL16xD

PinoutSpecificationsStorage TemperaturePlastic Packages . . . . . . . . . . . . . . . 65°C to +150°CAmbient Temperaturewith Power Applied . . . . . . . . . 65°C to +125°CVoltage with Respect to GroundVCC (Note 1) . . . . . . . . . . . . . . . ..0.5 V to +4.0 VA9, OE#, and RESET# (Note 2) . . . . ....

product image

Am29DL16xD Picture
See larger image
SeekIC No. : 004282213 Detail

Am29DL16xD: PinoutSpecificationsStorage TemperaturePlastic Packages . . . . . . . . . . . . . . . 65°C to +150°CAmbient Temperaturewith Power Applied . . . . . . . . . 65°C to +125°CVoltage with Respect to Grou...

Am29DL16xD Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
Am29DL16xD
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/31

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Pinout

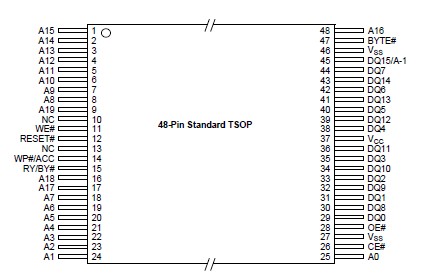

Connection Diagram


Specifications

Storage Temperature
Plastic Packages . . . . . . . . . . . . . . . 65°C to +150°C
Ambient Temperature
with Power Applied  . . . . . . . . . 65°C to +125°C
Voltage with Respect to Ground
VCC (Note 1)  . . . . . . . . . . . . . . . ..0.5 V to +4.0 V
A9, OE#, and RESET#
(Note 2) . . . . . . . . . . . . . . . . . .  .0.5 V to +12.5 V
WP#/ACC . . . . . . . . . . . . . . . . . .0.5 V to +10.5 V
All other pins (Note 1) . . . . . . 0.5 V to VCC +0.5 V
Output Short Circuit Current (Note 3)  . . . .   200 mA


Description

The Am29DL16xD family consists of 16 megabit, 3.0volt-only flash memory devices, organized as 1,048,576words of 16 bits each or 2,097,152 bytes of 8 bits each.

Word mode data appears on DQ0DQ15; byte modedata appears on DQ0DQ7. Am29DL16xD is designedto be programmed in-system with the standard 3.0 voltVCC supply, and can also be programmed in standardPROM programmers.

The device is available with an access time of 70, 90,or 120 ns. The devices are offered in 48-pin TSOP,48-ball Fine-pitch BGA, and 64-ball Fortified BGApackages. Standard control pins-chip enable (CE#),write enable (WE#), and output enable (OE#)-controlormal read and write operations, and avoid bus con-tention issues.

Am29DL16xD requires only a single 3.0 volt power sup-ply for both read and write functions. Internallygenerated and regulated voltages are provided for theprogram and erase operations.
