Am29DL16xC

Features: ` Data Management Software (DMS)- AMD-supplied software manages data programming and erasing, enabling EEPROM emulation- Eases sector erase limitations` Supports Common Flash Memory Interface (CFI)` Erase Suspend/Erase Resume- Suspends erase operations to allow programming in same bank` ...

product image

Am29DL16xC Picture
See larger image
SeekIC No. : 004282212 Detail

Am29DL16xC: Features: ` Data Management Software (DMS)- AMD-supplied software manages data programming and erasing, enabling EEPROM emulation- Eases sector erase limitations` Supports Common Flash Memory Interf...

Am29DL16xC Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
Am29DL16xC
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/31

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`  Data Management Software (DMS)
- AMD-supplied software manages data programming
  and erasing, enabling EEPROM emulation
- Eases sector erase limitations
`  Supports Common Flash Memory Interface (CFI)
`  Erase Suspend/Erase Resume
- Suspends erase operations to allow programming in
  same bank
`  Data# Polling and Toggle Bits
- Provides a software method of detecting the status of
  program or erase cycles
`  Unlock Bypass Program command
- Reduces overall programming time when issuing
  multiple program command sequences
  HARDWARE FEATURES
`  Any combination of sectors can be erased
`  Ready/Busy# output (RY/BY#)
- Hardware method for detecting program or erase
  cycle completion
`  Hardware reset pin (RESET#)
- Hardware method of resetting the internal state
  machine to reading array data
`  WP#/ACC input pin
- Write protect (WP#) function allows protection of two
  outermost boot sectors, regardless of sector protect status
- Acceleration (ACC) function accelerates program timing
`  Sector protection
- Hardware method of locking a sector, either
  in-system or using programming equipment, to
  prevent any program or erase operation within that sector
- Temporary Sector Unprotect allows changing data in
  protected sectors in-system


Pinout

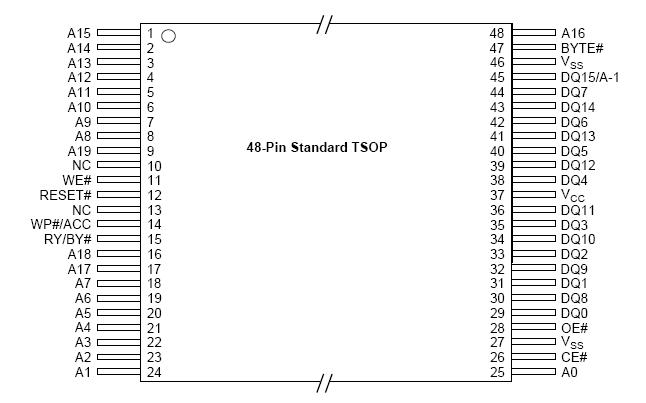

Connection Diagram


Specifications

Storage Temperature
Plastic Packages . . . . . . . . . . . . . . .   65°C to +150°C
Ambient Temperature
with Power Applied. . . . . . . . . . . . . . 65°C to +125°C
Voltage with Respect to Ground
VCC (Note 1) . . . . . . . . . . . . . . . . .  .  0.5 V to +4.0 V
A9, OE#, and RESET#
(Note 2) . . . . . . . . . . . . . . . . . . . .  . 0.5 V to +12.5 V
WP#/ACC . . . . . . . . . . . . . . . . . . . . 0.5 V to +10.5 V
All other pins (Note 1) . . . . . . . . 0.5 V to VCC +0.5 V
Output Short Circuit Current (Note 3) . . . . . .  200 mA
Notes:
1. Minimum DC voltage on input or I/O pins is 0.5 V.
During voltage transitions, input or I/O pins may
overshoot VSS to 2.0 V for periods of up to 20 ns.
Maximum DC voltage on input or I/O pins is VCC +0.5 V.
See Figure 7. During voltage transitions, input or I/O pins
may overshoot to VCC +2.0 V for periods up to 20 ns. See
Figure 8.
2. Minimum DC input voltage on pins A9, OE#, RESET#,
and WP#/ACC is 0.5 V. During voltage transitions, A9,
OE#, WP#/ACC, and RESET# may overshoot VSS to
2.0 V for periods of up to 20 ns. See Figure 7. Maximum
DC input voltage on pin A9 is +12.5 V which may
overshoot to +14.0 V for periods up to 20 ns. Maximum
DC input voltage on WP#/ACC is +9.5 V which may
overshoot to +12.0 V for periods up to 20 ns.
3. No more than one output may be shorted to ground at a
time. Duration of the short circuit should not be greater
than one second.
Stresses above those


Description

The Am29DL16xC family consists of 16 megabit, 3.0 volt-only flash memory devices, organized as 1,048,576 words of 16 bits each or 2,097,152 bytes of 8 bits each. Word mode data appears on DQ0DQ15; byte mode data appears on DQ0DQ7. Am29DL16xC is designed to be programmed in-system with the standard 3.0 volt VCC supply, and can also be programmed in standard EPROM programmers.

The device is available with an access time of 70, 80, 90, or 120 ns. The devices are offered in 56-pin SSOP, 48-pin TSOP, and 48-ball FBGA packages. Standard control pins-chip enable (CE#), write enable (WE#), and output enable (OE#)-control normal read and write operations, and avoid bus contention issues.

Am29DL16xC requires only a single 3.0 volt power supply for both read and write functions. Internally generated and regulated voltages are provided for the program and erase operations.
