Am29BL802C

Features: The Am29BL802C offers a Linear Burst mode-a32 word sequential burst with wrap around-in abottom boot configuration only. This devices requireadditional control pins for burst operations: LoadBurst Address (LBA#), Burst Address Advance(BAA#), and Clock (CLK). This implementation allowseas...

product image

Am29BL802C Picture
See larger image
SeekIC No. : 004282206 Detail

Am29BL802C: Features: The Am29BL802C offers a Linear Burst mode-a32 word sequential burst with wrap around-in abottom boot configuration only. This devices requireadditional control pins for burst operations: L...

Am29BL802C Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
Am29BL802C
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

The Am29BL802C offers a Linear Burst mode-a32 word sequential burst with wrap around-in abottom boot configuration only. This devices requireadditional control pins for burst operations: LoadBurst Address (LBA#), Burst Address Advance(BAA#), and Clock (CLK). This implementation allowseasy interface with minimal glue logic to a wide rangeof microprocessors/microcontrollers for high perfor-mance read operations.

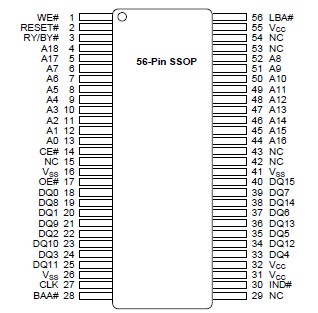

Pinout

Connection Diagram


Specifications

Storage Temperature
Plastic Packages . . . . . . . . . . . . . 65°C to +150°C
Ambient Temperature
with Power Applied  . . . . . . . . . . 65°C to +125°C
Voltage with Respect to Ground
VCC (Note 1) . . . . . . . . . . . . . . . . . .0.5 V to +4.0 V
A9, OE#, and RESET# (Note 2) . ...0.5 V to +13.0 V
All other pins (Note 1). . . . . . . . . . .0.5 V to +5.5 V
Output Short Circuit Current (Note 3)  . . . . . 200 mA


Description

The Am29BL802C is an 8 Mbit, 3.0 Volt-only burstmode Flash memory devices organized as 524, 288words. The device is offered in a 56-pin SSOPpackage. These devices are designed to be pro-grammed in-system with the standard system 3.0-voltVCC supply. A 12.0-volt VPP or 5.0 VCC is not requiredfor program or erase operations. The device can alsobe programmed in standard EPROM programmers.

Am29BL802C offers access times of 65, 70, 90, and 120ns, allowing high speed microprocessors to operatewithout wait states. To eliminate bus contention thedevice has separate chip enable (CE#), write enable(WE#) and output enable (OE#) controls.
