AZ6208B

Features: · Built-in Motor Driving Power Transistors (Typ. 100mA)· Brake is Applied When Stopping the Motor (When Input A and B are Both HIGH Level)· Built-in Diode to Absorb Surge Currents· Very Low Standby Circuit Current When Input A and B are Both LOW Level· Wide Range of Operating Supply Volt...

product image

AZ6208B Picture
See larger image
SeekIC No. : 004293417 Detail

AZ6208B: Features: · Built-in Motor Driving Power Transistors (Typ. 100mA)· Brake is Applied When Stopping the Motor (When Input A and B are Both HIGH Level)· Built-in Diode to Absorb Surge Currents· Very Lo...

AZ6208B Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
AZ6208B
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Built-in Motor Driving Power Transistors (Typ. 100mA)
· Brake is Applied When Stopping the Motor (When Input A and B are Both HIGH Level)
· Built-in Diode to Absorb Surge Currents
· Very Low Standby Circuit Current When Input A and B are Both LOW Level
· Wide Range of Operating Supply Voltage (4.5 to 15.0V)
· Direct Control with the TTL Logic


Application

· DVD Player


Pinout

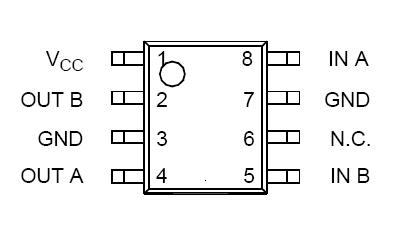

Connection Diagram


Specifications

Parameter Symbol Value Unit
Supply Voltage VCC 18 V
Maximum Motor Current IOUT 500 mA
Power Dissipation PD 700 (Note 2, 3) mW
Storage Temperature Range TSTG -55 to 150
Note 1: Stresses greater than those listed under "Absolute Maximum Ratings" may cause permanent damage to the
device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated
under "Recommended Operating Conditions" is not implied. Exposure to "Absolute Maximum Ratings" for extended
periods may affect device reliability.
Note 2: Power dissipation is reduced by 7 mW for each increase in TA of 1oC over 25oC.
Note 3: Only apply for SOIC-8 package.


Description

The AZ6208B is a monolithic integrated circuit used for driving reversible motors. It can control rever-sible motors in cassette players and other electrical equipment by using TTL-level logic signals.

The AZ6208B contains a logic section, which controls forward and reverse rotations as well as forced stop, and an output power section, which can supply an output current of up to 100mA (Typ.) according to the logic control.

The AZ6208B is available in SIP-9 and SOIC-8 Package.
