AZ494C

Features: · Stable 4.95V/5V Reference Voltage Trimmed to ±1.0% Accuracy· Uncommitted Output TR for 200mA Sink or Source Current· Single-End or Push-Pull Operation Selected by Output Control· Internal Circuitry Prohibits Double Pulse at Either Output· Complete PWM Control Circuit with Variable Duty...

product image

AZ494C Picture
See larger image
SeekIC No. : 004293413 Detail

AZ494C: Features: · Stable 4.95V/5V Reference Voltage Trimmed to ±1.0% Accuracy· Uncommitted Output TR for 200mA Sink or Source Current· Single-End or Push-Pull Operation Selected by Output Control· Interna...

AZ494C Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
AZ494C
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Stable 4.95V/5V Reference Voltage Trimmed to ±1.0% Accuracy
· Uncommitted Output TR for 200mA Sink or Source Current
· Single-End or Push-Pull Operation Selected by Output Control
· Internal Circuitry Prohibits Double Pulse at Either Output
· Complete PWM Control Circuit with Variable Duty Cycle
· On-Chip Oscillator With Master or Slave Operation


Application

· SMPS
· Back Light Inverter
· Charger


Pinout

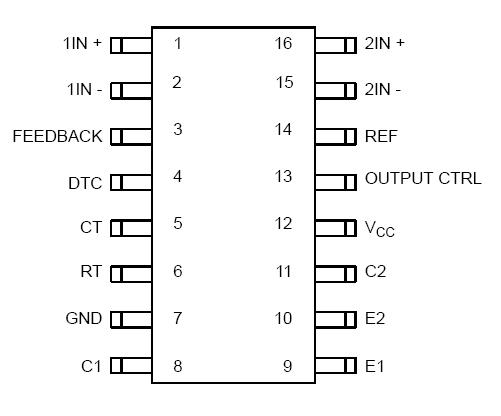

Connection Diagram


Description

The AZ494A/C is a voltage mode pulse width modulation switching regulator control circuit designed primarily for power supply control. The AZ494A/C consists of a reference voltage circuit, two error amplifiers, an on-chip adjustable oscillator, a dead-time control (DTC) comparator, a pulse-steering control flip-flop, and an output control circuit. The precision of voltage reference (VREF) is improved up to ± 1% through trimming and this provides a better output voltage regulation. The AZ494A/C provides for push-pull or single-ended output operation, which can be selected through the output control.
