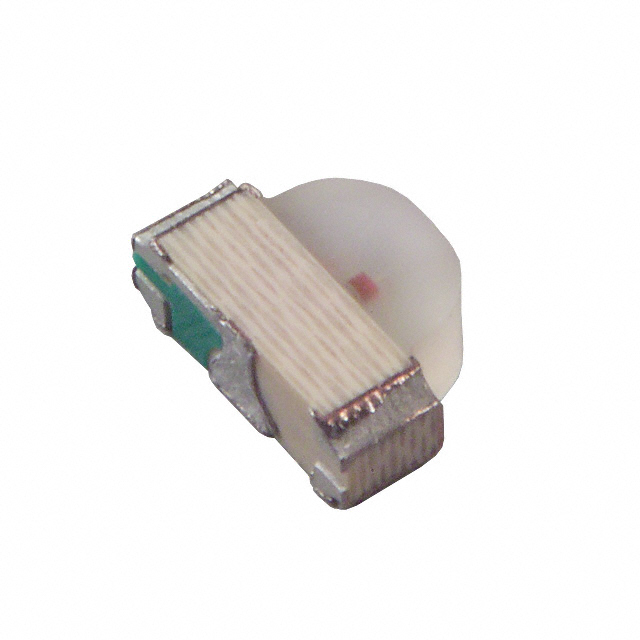

See larger image

SeekIC No. : 003614422 Detail

AYPG1211F-TR: LED YELLOW/GREEN BI-COLOR SMD

AYPG1211F-TR Data Sheet

US $ .12~.41 / Piece | Get Latest Price

Part Number:: AYPG1211F-TR
Mfg:
Supply Ability:: 5000

Price Break

Qty
0~1
1~25
25~100
100~250
250~500
500~1000

Unit Price
$.41
$.26
$.21
$.18
$.15
$.12

Processing time
15 Days
15 Days
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Product Details

Quick Details

Series:	1211F	Manufacturer:	Stanley Electric Co
Color:	Green, Yellow	Millicandela Rating:	5.2mcd Green, 3mcd Yellow
Voltage - Forward (Vf) Typ:	2.1V Green, 2.2V Yellow	Current - Test:	20mA
Wavelength - Dominant:	567nm, 590nm	Supply Current (Max) :	0.0023 mA
Wavelength - Peak:	560nm, 580nm	Viewing Angle:	150°, 140° Green, 150°, 140° Yellow
Lens Type:	Diffused, White	Lens Style/Size:	Round with Domed Top, 2mm
Package / Case:	1208 (3020 Metric)	Size / Dimension:	3.00mm L x 2.00mm W
Height:	1.00mm	Mounting Type:	Surface Mount, Right Angle

Description

Current - Test: 20mA
Packaging: Cut Tape (CT)Alternate Packaging
Mounting Type: Surface Mount, Right Angle
Lens Type: Diffused, White
Height: 1.00mm
Lens Style/Size: Round with Domed Top, 2mm
Package / Case: 1208 (3020 Metric)
Color: Green, Yellow
Size / Dimension: 3.00mm L x 2.00mm W
Manufacturer: Stanley Electric Co
Series: 1211F
Millicandela Rating: 5.2mcd Green, 3mcd Yellow
Voltage - Forward (Vf) Typ: 2.1V Green, 2.2V Yellow
Wavelength - Dominant: 567nm, 590nm
Wavelength - Peak: 560nm, 580nm
Viewing Angle: 150°, 140° Green, 150°, 140° Yellow

Parameters:

Technical/Catalog Information	AYPG1211F-TR
Vendor	Stanley Electric Co
Category	Optoelectronics
Color	Green, Yellow
Lens Style/Size	Rectangle, 2mm x 1mm
Millicandela Rating	5.2mcd Green, 3mcd Yellow
Voltage - Forward (Vf) Typ	2.1V Green, 2.2V Yellow
Wavelength - Dominant	567nm, 590nm
Wavelength - Peak	560nm, 580nm
Current - Test	20mA
Viewing Angle	150°, 140°
Lens Type	Diffused, White
Luminous Flux	24 mlm Green, 14 mlm Yellow
Package / Case	1208 (3020 metric)
Mounting Type	Surface Mount, Right Angle
Packaging	Tape & Reel (TR)
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	AYPG1211F TR AYPG1211FTR 404 1088 2 ND 40410882ND 404-1088-2
