Features:

Single chip USB 2.0 to 10/100M Fast Ethernet controller
AX88772A
Single chip USB 2.0 to MII, single chip MII to Ethernet and
USB Bridging controller in Dual-PHY mode (submitted for
US patent application) AX88172A
USB Device Interface
Integrates on-chip USB 2.0 transceiver and SIE
compliant to USB Spec 1.1 and 2.0
Supports USB Full and High Speed modes with
Bus-Power or Self-Power capability
Supports 4 or 6 programmable endpoints on USB
interface
High performance packet transfer rate over USB bus
using proprietary burst transfer mechanism (submitted for
US patent application)
Supports USB to Ethernet bridging or vice versa in
hardware
Fast Ethernet Controller
Integrates 10/100Mbps Fast Ethernet MAC/PHY
IEEE 802.3 10BASE-T/100BASE-TX compatible
Supports twisted pair crossover detection and
auto-correction (HP Auto-MDIX)
Embedded 16KB SRAM for RX packet buffering and
8KB SRAM for TX packet buffering
Supports both Full-duplex with flow control and
Half-duplex with backpressure operation
Supports 2 VLAN ID filtering, received VLAN Tag (4
bytes) can be stripped off or preserved
MAC/PHY loop-back diagnostic capability
Support Wake-on-LAN Function
Supports Suspend Mode and Remote Wakeup via
Link-up, Magic packet, MS wakeup frame and external
pin
Optional PHY power down during Suspend Mode
Versatile External Media Interface
Optional MII interface in MAC mode allows AX88172A
to work with external 100BASE-FX Ethernet PHY or
HomePNA PHY
Optional Reverse-MII or Reverse-RMII interface in PHY
mode allows AX88172A to work with external
HomePlug PHY or glueless MAC-to-MAC connections
Optional Reverse-MII interface in Dual-PHY mode
allows AX88172A to act as an Ethernet PHY or USB 2.0
PHY for external MAC device that needs Ethernet and
USB in system application
Supports 256/512 bytes (93c56/93c66) of serial EEPROM
(for storing USB Descriptors)
Supports automatic loading of Ethernet ID, USB Descriptors
and Adapter Configuration from EEPROM after power-on
initialization
Provides optional serial interface, I2C, SPI and UART
Integrates on-chip voltage regulator and only requires a
single 3.3V power supply
12MHz and 25Mhz clock input from either crystal or
oscillator source
Integrates on-chip power-on reset circuit
Small form factor with 64-pin LQFP (AX88772A) or 80-pin
TQFP (AX88172A) RoHS compliant package
Operating temperature range: 0°C to 70°C.




Pinout

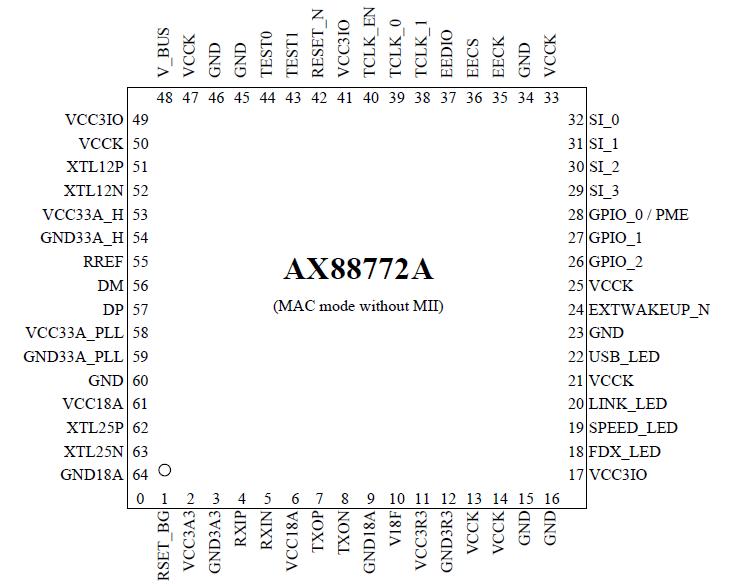

Connection Diagram




Specifications

Symbol
 Parameter
Rating
Unit
VCCK
 Digital core power supply
- 0.3 to 2.16
V
VCC18A
 Analog Power. 1.8V
- 0.3 to 2.16
V
VCC3IO
 Power supply of 3.3V I/O
- 0.3 to 4
V
VCC3R3
 Power supply of on-chip voltage regulator
- 0.3 to 4
V
VCC3A3
 Analog Power 3.3V for Ethernet PHY bandgap
- 0.3 to 3.8
V
VCC33A_PLL
 Analog Power 3.3V for USB PLL.
- 0.3 to 4
V
VCC33A_H
 Analog Power 3.3V for USB TX and RX
- 0.3 to 4
V
VIN18
 Input voltage of 1.8V I/O
- 0.3 to 2.16
V
VIN3
 Input voltage of 3.3V I/O
- 0.3 to 4.0
V
Input voltage of 3.3V I/O with 5V tolerant
- 0.3 to 5.8
V
TSTG
 Storage temperature
- 40 to 150
IIN
 DC input current
20
mA
IOUT
 Output short circuit current
20
mA
Note: Permanent device damage may occur if absolute maximum ratings are exceeded. Functional operation should be
restricted to the optional sections of this datasheet. Exposure to absolute maximum rating condition for extended periods may affect device reliability.




Description

The AX88772A/AX88172A Low-pin-count USB 2.0 to 10/100M Fast Ethernet controller is a high performance and highly integrated ASIC which enables low cost, small form factor, and simple plug-and-play Fast Ethernet network connection capability for desktops, notebook PC's, Ultra-Mobile PC's, docking stations, game consoles, digital-home appliances, and any embedded system using a standard USB port.

The AX88772A/AX88172A features a USB interface to communicate with a USB Host Controller and is compliant with USB specification V1.1 and V2.0. The AX88772A/AX88172A implements 10/100Mbps Ethernet LAN function based on IEEE802.3, and IEEE802.3u standards with 24KB of embedded SRAM for packet buffering. The AX88772A/AX88172A integrates an on-chip 10/100Mbps Ethernet PHY to simplify system design.

The AX88172A provides an optional External Media Interface (EMI) for external PHY or external MAC for different application purposes. The EMI can be a media-independent interface (MII) for implementing 100BASE-FX Ethernet or HomePNA functions. The EMI can also be a Reverse-MII or Reverse Reduced-MII (Reverse-RMII) for glueless MAC-to-MAC connections to any MCU with Ethernet MAC MII or RMII interface. In addition, the EMI can be configured to Dual-PHY mode allowing AX88172A to act as an Ethernet PHY or USB 2.0 PHY for external MAC device that needs Ethernet and USB interfaces in their system applications. The optional serial interface such as I2C, SPI, and UART are provided as a control channel from the USB Host Controller to communicate with the external MCU chip.
