AX88196 L

Features:

· IEEE 802.3u 100BASE-T, TX, and T4 Compatible
· Single chip local CPU bus 10/100Mbps Fast Ethernet MAC Controller
· Embedded 8K * 16 bit SRAM
· NE2000 register level compatible instruction
· Support both 8 bit and 16 bit local CPU interfaces include MCS-51 series, 80186 series and MC68K series CPU
· Support both 10Mbps and 100Mbps data rate
· Support both full-duplex or half-duplex operation
· Provides a MII port for both 10/100Mbps operation
· Provides SNI I/F for Home LAN PHY or 10M transceiver option
· Support EEPROM interface to store MAC address
· External and internal loop-back capability
· Support Standard Print Port, can also used as general I/O port
· 128-pin LQFP low profile package
· 20MHz to 25MHz Operation, Dual 5V and 3.3V CMOS process with 5V I/O tolerance. Or pure 3.3V operation

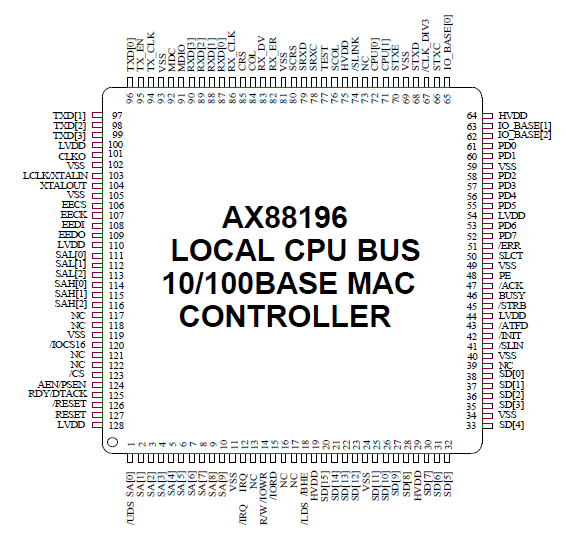

Pinout




Specifications

Description	SYM	Min	Max	Units
Operating Temperature	Ta	0	+85
Storage Temperature	Ts	-55	+150
Supply Voltage	HVdd	-0.3	+6	V
Supply Voltage	LVdd	-0.3	+4.6	V
Input Voltage	HVin LVin	-0.3 -0.3	HVdd+0.5 LVdd+0.5	V V
Output Voltage	HVin LVin	-0.3 -0.3	HVdd+0.5 LVdd+0.5	V V
Lead Temperature (soldering 10 seconds maximum)	Tl	-55	+220

Note : Stress above those listed under Absolute Maximum Ratings may cause permanent damage to the device.Exposure to Absolute Maximum Ratings conditions for extended period, adversely affect device life and reliability.
Note : The power supply voltages must always fulfill HVdd >= LVdd inequality.


Description

The AX88196 Fast Ethernet Controller is a high performance and highly integrated local CPU bus Ethernet Controller with embedded 8K*16 bit SRAM. The AX88196 supports both 8 bit and 16 bit local CPU interfaces include MCS-51 series, 80186 series, MC68K series CPU and ISA bus. The AX88196 implements both 10Mbps and 100Mbps Ethernet function based on IEEE802.3 / IEEE802.3u LAN standard and supports both 10Mbps/100Mbps media-independent interface (MII) and legacy pure 10Mbps SNI interface to simplify the design. Using Serial Network Interface (SNI) transceiver, Home LAN PHY or 10BASE-2 BNC type media can be supported.

As well as, the chip also provides Standard Print Port (parallel port interface), can be used for printer server device or treat as simple general I/O port.
