AWS5508

Features:

· 2.7V Control Operation
· Tri-band Operation
· High Isolation
· High Power
· High Linearity
· Small Leadless Package

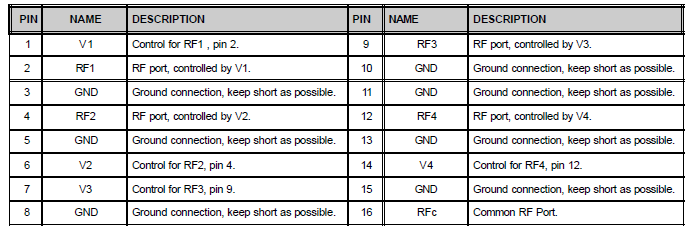

Pinout

Specifications

PARAMETER	MIN	MAX	UNIT
RF Input Power > 500 MHz, VCTL = 2.7V	-	8	W
Control Voltage	-0.4	10	V
Operating Temperature	-40	+125	°C
Storage Temperature	-65	+150	°C

Description

The AWS5508 SP4T high power antenna switch is designed to operate in the GSM 900Mhz, DCS 1800MHz, and PCS 1900MHz frequency bands. All 4 ports of the switch have identical electrical and linearity performance which allows flexibility in system design. Switching between ports is accomplished using 2.7 to 6 volts differential control voltages on the 4 control pins. The switch is provided in a leadless MLP-16 quad flat package.

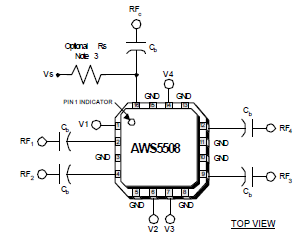

1. DC blocking capacitors Cb and optional resistor Rs must be supplied externally.
2. Cb = 100 pF for operation >500MHz.
3. The use of resistor Rs to the positive voltage supply is optional. It is only required if it is necessary to have all RF ports in Isolation state at the same time. Also, using Rs will improve  linearity performance to a small degree when V_CTL is at its lower limit. Rs = 10k W when used.
