Features: FEATURES
• 26.5 dB Gain
• +24 dBm Linear Output Power
• 2.3 % EVM (OFDM Modulation)
• +5 V to +6 V Supply
• High Efficiency
• Integrated Step Attenuator
• Integrated Output Power Detector
• 50 Matched RF Ports
• RoHS Compliant 4.5 mm x 4.5 mm x 1.4 mm Surface Mount ModuleApplication• WiMAX tranceivers that support the IEEE 802.16-2004 and ETSI EN301-021 standards

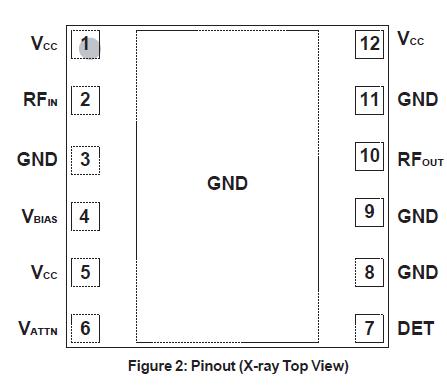

• Broadband Wireless Applications (BWA)Pinout
Specifications
| Frequency (GHz) |
3.3-3.6 |
| Supply (V) |
6 |
| Current (mA) |
305 @ Pout = +24 dBm |
| Gain (dB) |
26.5 |
| Output P1dB (dBm) |
31 |
| Error Vector Magnitude [EVM] |
2.3 % @ Pout = +24 dBm |
| Package Size (mm) |
4.5 x 4.5 x 1.4 |
| PARAMETER |
MIN |
MAX |
UNIT |
COMMENTS |
| Supply Voltage (VCC) |
0 |
+6.5 |
V |
|
| Bias Voltage (VBIAS) |
0 |
+3.3 |
V |
|
| Attenuator Control Voltage (VATTN) |
0 |
+3.7 |
V |
|
| RF Input Power |
- |
0 |
dBm |
OFDM modulated signal |
| ESD Rating |
Class 1A
Class 3 |
-
- |
-
- |
HBM
CDM |
| MSL Level |
3
4 |
-
- |
-
- |
235 °C Peak Reflow
250 °C Peak Reflow |
| Storage Temperature |
-40 |
+150 |
°C |
|
Stresses in excess of the absolute ratings may cause permanent damage. Functional operation is not
implied under these conditions. Exposure to absolute ratings for extended periods of time may adversely
affect reliability.DescriptionThe ANADIGICS AWM6432 WiMAX Power Amplifier is a high performance device that delivers exceptional linearity and efficiency at high levels of output power.
Designed to operate in the 3.5 GHz band, it supports the IEEE 802.16-2004 and ETSI EN301-021 wireless standards.
The AWM6432 is manufactured using advanced InGaP HBT technology that offers state-of-the-art reliability, temperature stability and ruggedness. It is optimized for use in a 50 system, and is offered in a 4.5 mm x 4.5 mm x 1.4 mm surface mount module.
The ANADIGICS AWM6432 WiMAX Power Amplifier is a high performance device that delivers exceptional linearity and efficiency at high levels of output power. Designed to operate in the 3.5 GHz band, it supports the IEEE 802.16-2004 and ETSI EN301-021 wireless standards.
The device requires only a single +5 V to +6 V supply and a low-current reference input. An integrated detector can be used to monitor output power, and an integrated 20 dB step attenuator enables gain control. No external circuits are required for biasing or RF impedance matching, thus reducing external component costs and facilitating circuit board designs.
The AWM6432 is manufactured using advanced InGaP HBT technology that offers state-of-the-art reliability, temperature stability and ruggedness. It is optimized for use in a 50 system, and is offered in a 4.5 mm x 4.5 mm x 1.4 mm surface mount module.
AWM6432 Data Sheet
