AWL6152

Features:

• InGaP HBT Technology
• < 3.5% EVM at +25 dBm Output Power (+5 V Supply), with 802.11g Modulation at 54 Mbps Data Rate
• < 3% EVM at +21 dBm Output Power (+3.3 V Supply), with 802.11g Modulation at 54 Mbps Data Rate
• +3 V to +5 V Supply
• High Efficiency
• 4 x 4 x 1.5 mm Surface Mount Module
• 50 - Matched RF Ports for Reduced External Component Count


Application

• 802.11g/b WLAN Stations and Client Cards
• 802.11g/b WLAN Access Points

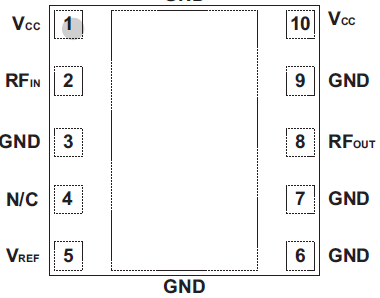

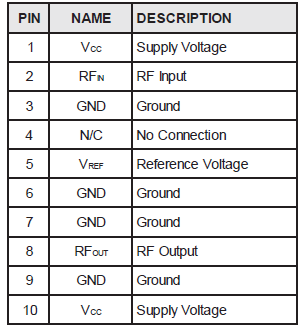

Pinout




Specifications

PARAMETER	MIN	MAX	UNIT
Supply Voltage (VCC)	0	+5.5	V
Reference Voltage (VREF)	0	+3.5	V
RF Input Power (PIN)	-	+10	dBm
Storage Temperature	-40	+150	°C

Description

The ANADIGICS AWL6152 WLAN Power Amplifier is an easy to use module that delivers high levels of linearity and efficiency for high data rate applications. Designed for the 2.4 GHz WLAN standards, it supports the 54 Mbps data rates specified in IEEE 802.11g.

Requiring a single +3 V to +5 V supply and a reference voltage input, the AWL6152 reduces system power consumption by offering a low leakage current while the amplifier is shut down.

No external circuits are required for RF impedance matching, thus reducing component costs and making it easy to incorporate the device into new designs.

The AWL6152 is manufactured using an advanced InGaP HBT technology that offers state-of-the-art reliability, temperature stability and ruggedness. It is offered in a 4mm x 4mm x 1.5mm surface mount module optimized for a 50 system.
