AV9107C-11

Features: • One pin slows CPU clock to 8 MHz• Provides system clock and selectable CPU clock• On-chip loop filter• Runs up to 66 MHz at 3.3V• Worst case cycle-to-cycle variation of 0.1%• Smooth transition from one CPU frequency to another or to 8 MHz• Lowe...

product image

AV9107C-11 Picture
SeekIC No. : 004291795 Detail

AV9107C-11: Features: • One pin slows CPU clock to 8 MHz• Provides system clock and selectable CPU clock• On-chip loop filter• Runs up to 66 MHz at 3.3V• Worst case cycle-to-cycle ...

floor Price/Ceiling Price

Part Number:
AV9107C-11
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/22

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• One pin slows CPU clock to 8 MHz
• Provides system clock and selectable CPU clock
• On-chip loop filter
• Runs up to 66 MHz at 3.3V
• Worst case cycle-to-cycle variation of 0.1%
• Smooth transition from one CPU frequency to another or to 8 MHz
• Lowest jitter, ±250ps absolute
• 16 internal frequencies for 386, 486 or Pentium systems
• Worst case duty cycle of 45/55 on CPU clock

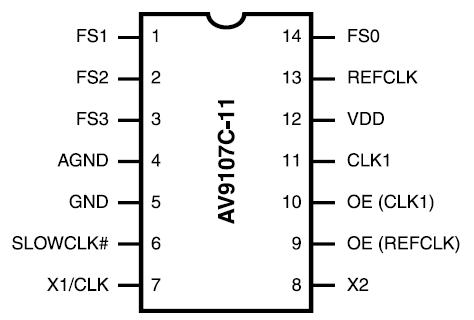

Pinout

  Connection Diagram


Description

The AV9107C-11 offers a tiny footprint solution for generating a fixed system clock and a selectable CPU clock. The 16 selectable CPU frequencies provide all necessary clocks for 386, 486 and Pentium systems.

In addition, the AV9107C-11 has one pin that, when forced low, will slow the CPU clock to 8 MHz. This feature is important in systems that have dynamic microprocessors. Dynamic microprocessors have a minimum operating speed, typically 8 MHz. In"green" PCs, the designer often wants to slow the CPU to its minimum operating speed to save power. The AV9107C-11 will smoothly slow the CPU to 8 MHz when the SLOWCLK pin goes low.

The AV9107C-11 is fabricated using 0.8m CMOS technology. As a result, a 45/55 duty cycle can be achieved on the CPU clock and ±250ps worst case absolute jitter.
