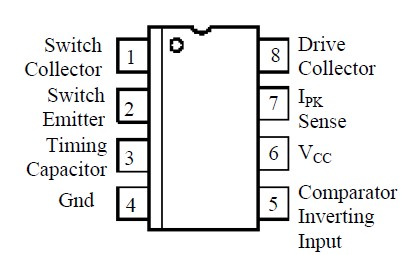

Features: · Operation from 3.0 to 40V input· Low standby current· Current limiting· Output switch current of 1.5A· Output voltage adjustable· Frequency of operation from 100Hz to 100KHz· Precision 2% referencePinoutSpecifications Characteristic Symbol Value Unit Power S...
AV34063: Features: · Operation from 3.0 to 40V input· Low standby current· Current limiting· Output switch current of 1.5A· Output voltage adjustable· Frequency of operation from 100Hz to 100KHz· Prec...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
US $.8 - 1.15 / Piece
Basic / Snap Action / Limit Switches SWITCH FS PIN PLUNGER GOLD PCB
Characteristic |
Symbol |
Value |
Unit |
Power Supply Voltage |
VCC |
40 |
V |
Comparator Input Voltage Range |
VIR |
-0.3 to +40 | |
Switch Collector Voltage |
VC(switch) |
40 | |
Switch Emitter Voltage (VPIN1=40V) |
VE(switch) |
40 | |
Switch Collector toEmitter Voltage |
VCE(switch) |
40 | |
Driver Collector Voltage |
VC(driver) |
40 | |
Driver Collector Current (Note1) |
IC(driver |
100 |
mA |
Switch Current |
ISW |
1.5 |
A |
Power Dissipation and Thermal Charcteristics Plastic Package TA =25 Thermal Resistance SOIC Package TA =25 Thermal Resistance |
PD RJA PD RJA |
1.25 100 0.625 100 |
W /W W /W |
Operating Juncton Temperature |
TJ |
+150 |
|
Operating Ambient Temperature Range |
TA |
0to+70 |
|
Storage Temperature Range |
Tstg |
-60~150 |
The AV34063 is a monolithic control circuit containing the primary functions required for DC-to-DC converters. This device consists of an internal temperature compensated reference, comparator, controlled duty cycle oscillator with an active current limit circuit,driver and high current output switch. This device was specifically designed to be incorporated in Step-Down and Step-Up and Voltage-inverting applications with a minimum number of external components.
