Product Details

Description



Features:

*High accuracy 2.5, 3.0, 3.3, 3.6 or 5V fixed output for
TO-92, SOP-8 package.
*Extremely low quiescent current and dropout voltage.
*Extremely tight load and line regulation.
*Current and thermal limiting.
*Very low temperature coefficient.
*Logic controlled shutdown and error flag available for DIP
and SOP package.
*Output voltage programmable for DIP and SOP package.


Application

*Battery powered equipment.
*High efficient linear regulator down to 1.24V.
*Cellular phones.


Pinout

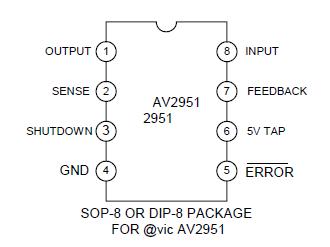

Connection Diagram


Specifications

PARAMETER
SYMBOL
VALUE
UNIT
Supply Voltage
Vcc
-0.3~+30
V
Feedback Voltage
Vfeedback
-1.5~+30
V
Shutdown Voltage
Vshutdown
-0.3~+30
V
Storage Temperature
Tstr
-65~+150
°C
Operating Junction Temperature
Tj
-40~+125
°C



Description

The @vic AV2950/2951 is a monolithic integrated voltage regulator with low dropout voltage, and low quiescent current. It includes many features that suitable for different applications. Available in 3-pin TO-92, DIP-8 and SOP-8 packages.
