Features:

Fully compliant with the Universal Serial Bus Specification, version 1.1
USB hub design is compliant with Universal Serial Bus Hub Specification, revision 1.1
USB keyboard design is compliant with USB Device Class Definition for Human Interface Devices (HID), Firmware Specification, version 1.1
Single chip integration of USB keyboard, hub, ACPI and multimedia control functions
Integrated USB hub supports two bus-powered downstream ports
Patent-pending, table-driven SCANTABLE? technology for easy customization to different keyboard matrix up to 18x8.
Support rotary encoder for multimedia volume control
Support CD/DVD Play/Pause, Fast Forward, Rewind, Stop, Eject, Mute (up to 24 keys)
Additional general purpose keys for internet, email, help.shortcuts, up to 16 keys.
Additional 2 general purpose LEDs
Support ACPI compliant suspend/shutdown key
If necessary, USB vendor ID, product ID, and keyboard scan code table can be customized via optional external EEPROM.
Built-in 3.3v voltage regulator allows single +5V operating voltage drawing directly from USB bus. This results in reduced overall system cost.
Optional gang-powered control pin for downstream port.
Runs at 12Mhz frequency
Available in 64-pin LQFP package.



Pinout

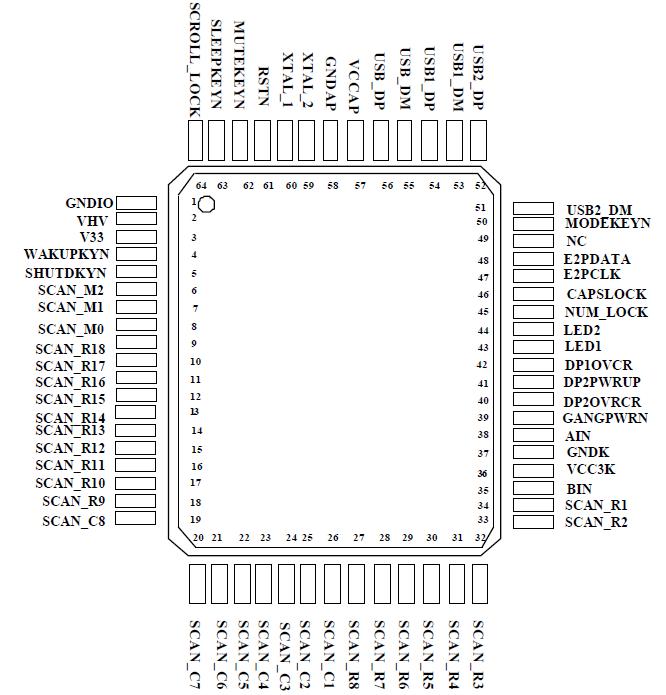

  Connection Diagram


Specifications

SYMBOL PARAMETER RATING UNITS
VCC Power Supply -0.3 to 6.0 V
VIN Input Voltage -0.3 to VCC+0.3 V
VOUT Output Voltage -0.3 to VCC+0.3 V
Vcc5 Power Supply for Dual
Oxide Cells
-0.6 to 6.0 V
Vin5 Power Supply for Dual
Oxide Cells
-0.3 to Vcc5 +0.3 V
VOUT Output Voltage -0.3 to Vcc5 +0.3 V
TSTG Storage Temperature -55 to 150



Description

The AU9472 R2 is an integrated USB keyboard and 2 port hub controller chip. The AU9472 R2 has a built-in default keyboard matrix, so that it can be directly connected to an 18 x 8 keyboard matrix. The keyboard matrix can be customized via an optional external 1024-byte serial EEPROM. Downstream ports can be used to connect various USB peripheral devices, such as USB printers, modems, scanners, cameras, mice, and joysticks to the system without adding external glue logic. It also supports multimedia volume control, CD/DVD Play/Pause, Stop, Eject, Mute and general purpose shortcut keys such as Internet, email and help.

This single chip integration makes the AU9472 R2 the most cost effective hub/keyboard solution available in the market.
