AU9384

Features: Support USB v1.1 specification and USB Device Class Definition for Mass Storage, Bulk-Transport v1.0 Work with default driver from Windows ME, Windows 2000, Windows XP, and Mac 9.2, Mac OS X. Windows 98SE is supported by vendor driver from Alcor. Support AutoRun feature The vendor i...

product image

AU9384 Picture
SeekIC No. : 004291685 Detail

AU9384: Features: Support USB v1.1 specification and USB Device Class Definition for Mass Storage, Bulk-Transport v1.0 Work with default driver from Windows ME, Windows 2000, Windows XP, and Mac 9.2, Mac ...

floor Price/Ceiling Price

Part Number:
AU9384
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/24

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

  Support USB v1.1 specification and USB Device Class Definition for Mass Storage, Bulk-Transport v1.0
  Work with default driver from Windows ME, Windows 2000, Windows XP, and Mac 9.2, Mac OS X. Windows 98SE is supported by vendor driver from Alcor.
  Support AutoRun feature
      The vendor image designed (such as logo, disk icon and label) can be pre-installed to UFD and display automatically right after device plug in.
  AutoRun feature can be supported on Windows ME, Windows 2000, Windows XP and Windows 98.
  Provide vendor with hidden flash area where user cannot access.
  No extra CD needed for application program, all security and partition program can be preinstalled in hidden area and automatically running after device plug in. Enable vendor develops proactive killer application with incredible "No installation", "Without one click " & "Plug-N-Play" features.
  Security function supported with password protection
  Multiple FIFO implementation for concurrent bus operation
  64-pin package supports to 8 pieces NAND Flash memory chip; total capacity reaches to 2G byte when working with 1G bit mono dies chip.
  48-pin package supports to 4 pieces NAND Flash memory chip; total capacity reaches to 1G byte.
  Support mixed different size NAND Flash
  Vendor ID, product ID and strings can be customized by utility software from Alcor
  Can be configured to support dual partitions with dynamic logic disk space allocation.

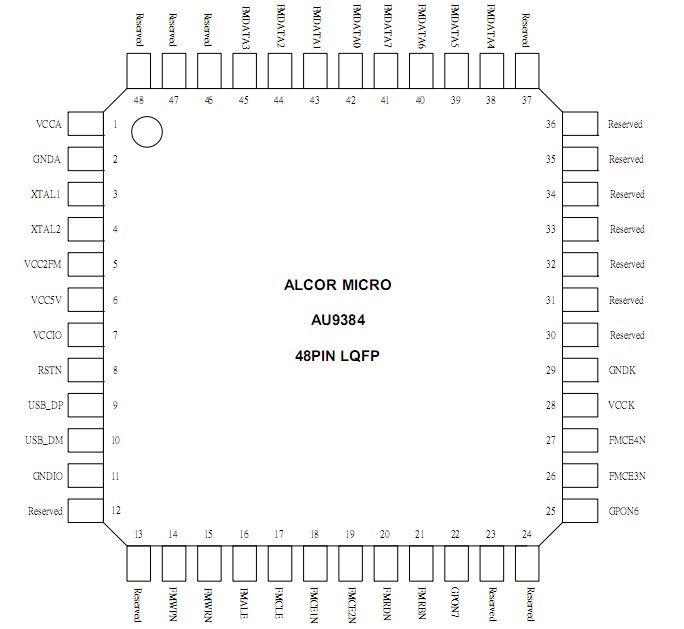

Pinout

  Connection Diagram


Description

AU9384 is a highly integrated single chip USB flash disk controller. It provides the most cost efficient bridge between USB enabled PC and NAND type flash memory. Not only it can be used as a removable storage disk in Windows PC, Apple Macintosh, Notebook and Linux/Unix workstation, it also can be configured as bootable disk for system reparation.

AU9384 gives USB storage device a new life. It will automatically execute your program & play content including Video MPEG, Audio MP3, Advertisements and Applications. AU9384 is an outstanding USB storage device controller, it enables auto run features in Windows 98, XP, 2000 and ME. These unique features give hardware device maker and software vendor tremendous opportunity to develop user-friendly appliance and application.

AU9384 works with 1 to 8 NAND type flash memory chip with the combination of popular flash memory types such as 8M, 16M, 32M, 64M,128M and 256M. Additional features include write protection switch, activity LED and password protected security.
