AU6330

Features: Support USB2.0 specification 480Mbps transmission and USB Device Class Definition for Mass Storage, Bulk-Transport V1.0 Integrated USB2.0 Transceiver Macrocell Interface (UTMI) transceiver and Serial Interface Engine (SIE) Support SD card and MMC specification Work with default driver f...

product image

AU6330 Picture
See larger image
SeekIC No. : 004291670 Detail

AU6330: Features: Support USB2.0 specification 480Mbps transmission and USB Device Class Definition for Mass Storage, Bulk-Transport V1.0 Integrated USB2.0 Transceiver Macrocell Interface (UTMI) transceive...

AU6330 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
AU6330
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Support USB2.0 specification 480Mbps transmission and USB Device Class Definition for Mass Storage, Bulk-Transport V1.0
Integrated USB2.0 Transceiver Macrocell Interface (UTMI) transceiver and Serial Interface Engine (SIE)
Support SD card and MMC specification
Work with default driver from Windows ME/2000/XP, Mac OS X and Linux kernel 2.4.1 above. Windows 98 & Windows 2000 SP1/2 are supported by     vendor driver from Alcor.
Ping-pong FIFO implementation for concurrent bus operation
Support multiple sectors transfer optimize performance
Support optional external EEPROM for USB VID, PID and string customization
Capable of handling 8 sets of built-in PID, VID and strings to minimize inventory control and improve production lead time
Support LED for bus activity indication.
Runs at 30MHz, built-in 480 MHz PLL
 Built-in to 3.3V to 2.5V regulator


Pinout

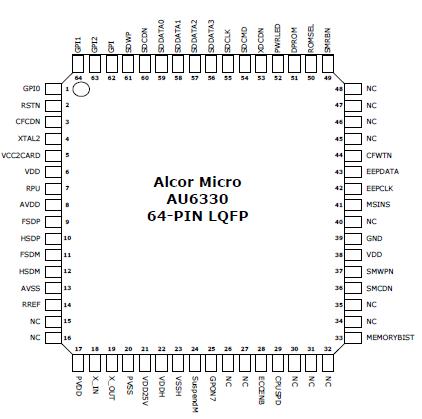

Connection Diagram


Specifications

SYMBOL PARAMETER RATING UNITS
V CC
 Power Supply -0.3 to VCC +0.3
V
VIN Input Voltage -0.3 to 3.3 V
VOUT Output Voltage -0.3 to VCC +0.3 V
TSTG Storage Temperature -40 to 150



Description

The AU6330 is a highly integrated single chip for USB SD/MMC flash card reader controller. It supports USB2.0 high/full speed transmission via USB port interface to Host PC and 4-bit parallel transmission via SD/MMC interface to flash card. The AU6330 supports USB2.0 Storage Class Specification, Bulk-Transport Protocol. It can read digital content stored in SD/MMC flash card designed to cover a wide area of application such as digital camera, PDA, MP3 player and smart phone.etc.

With the AU6330, users can transfer digital data between SD/MMC flash card and PC or these electronic devices.
