ATtiny45

Features: • High Performance, Low Power AVR® 8-Bit Microcontroller• Advanced RISC Architecture 120 Powerful Instructions Most Single Clock Cycle Execution 32 x 8 General Purpose Working Registers Fully Static Operation• Non-volatile Program and Data Memories 2/4/8K Byte of I...

product image

ATtiny45 Picture
See larger image
SeekIC No. : 004291601 Detail

ATtiny45: Features: • High Performance, Low Power AVR® 8-Bit Microcontroller• Advanced RISC Architecture 120 Powerful Instructions Most Single Clock Cycle Execution 32 x 8 General Purpose Wor...

ATtiny45 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ATtiny45
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/28

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• High Performance, Low Power AVR® 8-Bit Microcontroller
• Advanced RISC Architecture
120 Powerful Instructions Most Single Clock Cycle Execution
32 x 8 General Purpose Working Registers
Fully Static Operation
• Non-volatile Program and Data Memories
2/4/8K Byte of In-System Programmable Program Memory Flash (ATtiny25/45/85) Endurance: 10,000 Write/Erase Cycles
128/256/512 Bytes In-System Programmable EEPROM (ATtiny25/45/85) Endurance: 100,000 Write/Erase Cycles
128/256/512 Bytes Internal SRAM (ATtiny25/45/85)
Programming Lock for Self-Programming Flash Program and EEPROM Data Security
• Peripheral Features
8-bit Timer/Counter with Prescaler and Two PWM Channels
8-bit High Speed Timer/Counter with Separate Prescaler 2 High Frequency PWM Outputs with Separate Output Compare Registers Programmable Dead Time Generator
USI Universal Serial Interface with Start Condition Detector
10-bit ADC 4 Single Ended Channels 2 Differential ADC Channel Pairs with Programmable Gain (1x, 20x) Temperature Measurement
Programmable Watchdog Timer with Separate On-chip Oscillator
On-chip Analog Comparator
• Special Microcontroller Features
debugWIRE On-chip Debug System
In-System Programmable via SPI Port
External and Internal Interrupt Sources
Low Power Idle, ADC Noise Reduction, and Power-down Modes
Enhanced Power-on Reset Circuit
Programmable Brown-out Detection Circuit
Internal Calibrated Oscillator
• I/O and Packages
Six Programmable I/O Lines
8-pin PDIP, 8-pin SOIC and 20-pad QFN/MLF
• Operating Voltage
1.8 - 5.5V for ATtiny25/45/85V
2.7 - 5.5V for ATtiny25/45/85
• Speed Grade
ATtiny25/45/85V: 0 - 4 MHz @ 1.8 - 5.5V, 0 - 10 MHz @ 2.7 - 5.5V
ATtiny25/45/85: 0 - 10 MHz @ 2.7 - 5.5V, 0 - 20 MHz @ 4.5 - 5.5V
• Industrial Temperature Range
• Low Power Consumption
Active Mode: 1 MHz, 1.8V: 300 A
Power-down Mode: 0.1A at 1.8V


Pinout

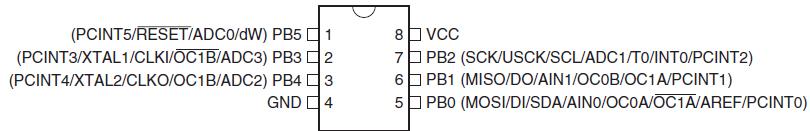

Connection Diagram


Specifications

Operating Temperature............................... -55°C to +125°C
Temperature ................................................-65°C to +150°C
Voltage on any Pin except RESET
with respect to Ground .............................-0.5V to VCC+0.5V
Voltage on RESET with respect to Ground......-0.5V to +13.0V
Maximum Operating Voltage ...........................................6.0V
DC Current per I/O Pin ............................................. 40.0 mA
DC Current VCC and GND Pins................................ 200.0 mA


Description

The ATtiny25/ATtiny45/85 is a low-power CMOS 8-bit microcontroller based on the AVR enhanced RISC architecture. By executing powerful instructions in a single clock cycle, the ATtiny25/45/85 achieves throughputs approaching 1 MIPS per MHz allowing the system designer to optimize power consumption versus processing speed.
