Product Details

Description



Features:

• High Performance, Low Power AVR® 8-Bit Microcontroller
• Advanced RISC Architecture
120 Powerful Instructions Most Single Clock Cycle Execution
32 x 8 General Purpose Working Registers
Fully Static Operation
• Non-volatile Program and Data Memories
2/4/8K Byte of In-System Programmable Program Memory Flash (ATtiny24/44/84) Endurance: 10,000 Write/Erase Cycles
128/256/512 Bytes In-System Programmable EEPROM (ATtiny24/44/84) Endurance: 100,000 Write/Erase Cycles
128/256/512 Bytes Internal SRAM (ATtiny24/44/84)
Programming Lock for Self-Programming Flash Program and EEPROM Data Security
• Peripheral Features
Two Timer/Counters, 8- and 16-bit counters with two PWM Channels on both
10-bit ADC 8 single-ended channels 12 differential ADC channel pairs with programmable gain (1x, 20x) Temperature Measurement
Programmable Watchdog Timer with Separate On-chip Oscillator
On-chip Analog Comparator
Universal Serial Interface
• Special Microcontroller Features
debugWIRE On-chip Debug System
In-System Programmable via SPI Port
External and Internal Interrupt Sources
Pin Change Interrupt on 12 pins
Low Power Idle, ADC Noise Reduction, Standby and Power-down Modes
Enhanced Power-on Reset Circuit
Programmable Brown-out Detection Circuit
Internal Calibrated Oscillator
On-chip Temperature Sensor
• I/O and Packages
14-pin SOIC, PDIP and 20-pin QFN/MLF: Twelve Programmable I/O Lines
• Operating Voltage:
1.8 - 5.5V for ATtiny24V/44V/84V
2.7 - 5.5V for ATtiny24/44/84
• Speed Grade
ATtiny24V/44V/84V: 0 - 4 MHz @ 1.8 - 5.5V, 0 - 10 MHz @ 2.7 - 5.5V
ATtiny24/44/84: 0 - 10 MHz @ 2.7 - 5.5V, 0 - 20 MHz @ 4.5 - 5.5V
• Industrial Temperature Range
• Low Power Consumption
Active Mode: 1 MHz, 1.8V: 380 µA
Power-down Mode: 1.8V: 100 nA


Pinout

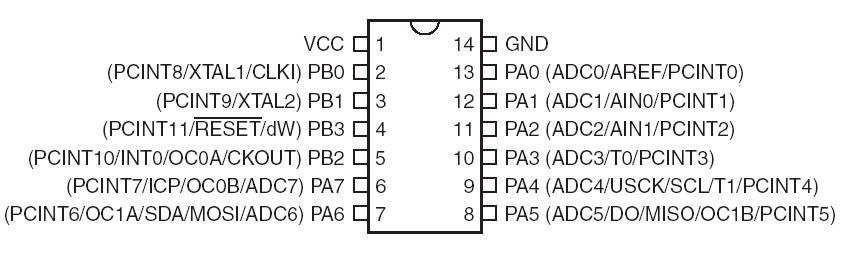

Connection Diagram


Description

The ATtiny24/44/84 is a low-power CMOS 8-bit microcontroller based on the AVR enhanced RISC architecture. By executing powerful instructions in a single clock cycle, the ATtiny 24/44/84 achieves throughputs approaching 1 MIPS per MHz allowing the system designer to optimize power consumption versus processing speed.
