ATmega329

Features: • High Performance, Low Power AVR® 8-Bit Microcontroller• Advanced RISC Architecture 130 Powerful Instructions Most Single Clock Cycle Execution 32 x 8 General Purpose Working Registers Fully Static Operation Up to 16 MIPS Throughput at 16 MHz On-Chip 2-cycle Multiplier&...

product image

ATmega329 Picture
See larger image
SeekIC No. : 004291389 Detail

ATmega329: Features: • High Performance, Low Power AVR® 8-Bit Microcontroller• Advanced RISC Architecture 130 Powerful Instructions Most Single Clock Cycle Execution 32 x 8 General Purpose Wor...

ATmega329 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ATmega329
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/28

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• High Performance, Low Power AVR® 8-Bit Microcontroller
• Advanced RISC Architecture
130 Powerful Instructions Most Single Clock Cycle Execution
32 x 8 General Purpose Working Registers
Fully Static Operation
Up to 16 MIPS Throughput at 16 MHz
On-Chip 2-cycle Multiplier
• Non-volatile Program and Data Memories
In-System Self-Programmable Flash, Endurance: 10,000 Write/Erase Cycles 32K bytes (ATmega329/ATmega3290) 64K bytes (ATmega649/ATmega6490)
Optional Boot Code Section with Independent Lock Bits In-System Programming by On-chip Boot Program True Read-While-Write Operation
EEPROM, Endurance: 100,000 Write/Erase Cycles 1K bytes (ATmega329/ATmega3290) 2K bytes (ATmega649/ATmega6490)
Internal SRAM 2K bytes (ATmega329/ATmega3290) 4K bytes (ATmega649/ATmega6490)
Programming Lock for Software Security
• JTAG (IEEE std. 1149.1 compliant) Interface
Boundary-scan Capabilities According to the JTAG Standard
Extensive On-chip Debug Support
Programming of Flash, EEPROM, Fuses, and Lock Bits through the JTAG Interface
• Peripheral Features
4 x 25 Segment LCD Driver (ATmega329/ATmega649)
4 x 40 Segment LCD Driver (ATmega3290/ATmega6490)
Two 8-bit Timer/Counters with Separate Prescaler and Compare Mode
One 16-bit Timer/Counter with Separate Prescaler, Compare Mode, and Capture Mode
Real Time Counter with Separate Oscillator
Four PWM Channels
8-channel, 10-bit ADC
Programmable Serial USART
Master/Slave SPI Serial Interface
Universal Serial Interface with Start Condition Detector
Programmable Watchdog Timer with Separate On-chip Oscillator
On-chip Analog Comparator
Interrupt and Wake-up on Pin Change
• Special Microcontroller Features
Power-on Reset and Programmable Brown-out Detection
Internal Calibrated Oscillator
External and Internal Interrupt Sources
Five Sleep Modes: Idle, ADC Noise Reduction, Power-save, Power-down, and Standby
• I/O and Packages
53/68 Programmable I/O Lines
64-lead TQFP, 64-pad QFN/MLF, and 100-lead TQFP
• Speed Grade:
ATmega329V/ATmega3290V/ATmega649V/ATmega6490V:
- 4 MHz @ 1.8 - 5.5V, 0 - 8 MHz @ 2.7 - 5.5V
ATmega329/3290/649/6490:
- 8 MHz @ 2.7 - 5.5V, 0 - 16 MHz @ 4.5 - 5.5V
• Temperature range:
-40°C to 85°C Industrial


Pinout

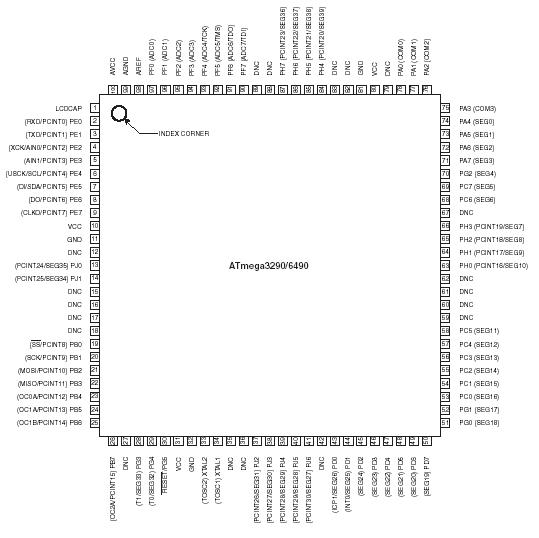

Connection Diagram


Specifications

Operating Temperature............................ -55°C to +125°C
Storage Temperature .............................. -65°C to +150°C
Voltage on any Pin except RESET
with respect to Ground .............................-0.5V to VCC+0.5V
Voltage on RESET with respect to Ground......-0.5V to +13.0V
Maximum Operating Voltage .......................................... 6.0V
DC Current per I/O Pin ............................................. 40.0 mA
DC Current VCC and GND Pins................................ 200.0 mA
