ATmega165P

Features: • High Performance, Low Power AVR® 8-Bit Microcontroller• Advanced RISC Architecture 130 Powerful Instructions Most Single Clock Cycle Execution 32 x 8 General Purpose Working Registers Fully Static Operation Up to 16 MIPS Throughput at 16 MHz On-Chip 2-cycle Multip...

product image

ATmega165P Picture
See larger image
SeekIC No. : 004291356 Detail

ATmega165P: Features: • High Performance, Low Power AVR® 8-Bit Microcontroller• Advanced RISC Architecture 130 Powerful Instructions Most Single Clock Cycle Execution 32 x 8 General Purpose W...

ATmega165P Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ATmega165P
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/6/8

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• High Performance, Low Power AVR® 8-Bit Microcontroller
• Advanced RISC Architecture
  130 Powerful Instructions Most Single Clock Cycle Execution
  32 x 8 General Purpose Working Registers
  Fully Static Operation
  Up to 16 MIPS Throughput at 16 MHz
  On-Chip 2-cycle Multiplier
• Non-volatile Program and Data Memories
  16K bytes of In-System Self-Programmable Flash Endurance: 10,000 Write/Erase Cycles
  Optional Boot Code Section with Independent Lock Bits In-System Programming by On-chip Boot Program
  True Read-While-Write Operation
  512 bytes EEPROM
  Endurance: 100,000 Write/Erase Cycles
  1K byte Internal SRAM
  Programming Lock for Software Security
• JTAG (IEEE std. 1149.1 compliant) Interface
  Boundary-scan Capabilities According to the JTAG Standard
  Extensive On-chip Debug Support
  Programming of Flash, EEPROM, Fuses, and Lock Bits through the JTAG Interface
• Peripheral Features
  Two 8-bit Timer/Counters with Separate Prescaler and Compare Mode
  One 16-bit Timer/Counter with Separate Prescaler, Compare Mode, and Capture Mode
  Real Time Counter with Separate Oscillator
  Four PWM Channels
  8-channel, 10-bit ADC
  Programmable Serial USART
  Master/Slave SPI Serial Interface
  Universal Serial Interface with Start Condition Detector
  Programmable Watchdog Timer with Separate On-chip Oscillator
  On-chip Analog Comparator
   Interrupt and Wake-up on Pin Change
• Special Microcontroller Features
  Power-on Reset and Programmable Brown-out Detection
  Internal Calibrated Oscillator
  External and Internal Interrupt Sources
  Five Sleep Modes: Idle, ADC Noise Reduction, Power-save, Power-down, and Standby
• I/O and Packages
  54 Programmable I/O Lines
  64-lead TQFP and 64-pad QFN/MLF
• Speed Grade:
  ATmega165PV: 0 - 4 MHz @ 1.8 - 5.5V, 0 - 8 MHz @ 2.7 - 5.5V
  ATmega165P: 0 - 8 MHz @ 2.7 - 5.5V, 0 - 16 MHz @ 4.5 - 5.5V
• Temperature range:
  -40°C to 85°C Industrial
• Ultra-Low Power Consumption
  Active Mode:
  1 MHz, 1.8V: 330 A
  32 kHz, 1.8V: 10 A (including Oscillator)
  Power-down Mode:
  0.1 A at 1.8V
  Power-save Mode:
  0.6 A at 1.8V(Including 32 kHz RTC)

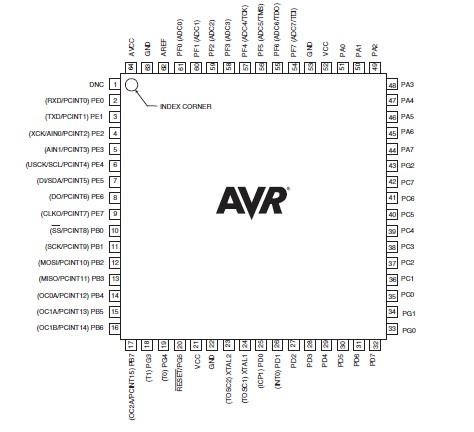

Pinout

Connection Diagram
