ATUSBFUNC-SS7211

Features: • USB 1.1-compliant• Approximately 6.5K Gates• Supports 12 Mbps Transfers Only• Functionally Compatible with Open HCI and UHCI• Modular Design for Ease of Integration• Supports Control, Interrupt, Bulk and Isochronous Transfers• Four Configurable...

product image

ATUSBFUNC-SS7211 Picture
SeekIC No. : 004291610 Detail

ATUSBFUNC-SS7211: Features: • USB 1.1-compliant• Approximately 6.5K Gates• Supports 12 Mbps Transfers Only• Functionally Compatible with Open HCI and UHCI• Modular Design for Ease of Int...

floor Price/Ceiling Price

Part Number:
ATUSBFUNC-SS7211
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/10/30

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• USB 1.1-compliant
• Approximately 6.5K Gates
• Supports 12 Mbps Transfers Only
• Functionally Compatible with Open HCI and UHCI
• Modular Design for Ease of Integration
• Supports Control, Interrupt, Bulk and Isochronous Transfers
• Four Configurable Endpoints
• Complete Error Handling Capability
• Automatic Data Retry in Hardware
• Flexible Application Interface
• Supports Power Management



Application

The Application Interface provides a simple mechanism to interface to the user logic. This interface allows direct access to all the endpoint FIFOs except for the control endpoint EP0. This block generates the signals for all other endpoint transfers and provides access to their respective FIFOs. For example, a bulk in transfer can be done to EP2 and setting, clearing of stall conditions are controlled by the application. EP1, EP2 and EP3 endpoints are controlled independently. This allows simultaneous access to these endpoints.




Pinout

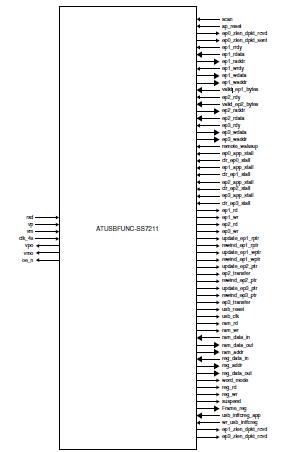

  Connection Diagram


Description

The ATUSBFUNC-SS7211 is a fully synthesizable core that can be implemented in any Atmel ASIC library (gate array or standard cell). The core is supported by a comprehensive USB test environment (ATUSBTEST-SS7400) that can be used to verify the entire design, including the application. The USB Function Core can be used in any high-speed (12 Mbps) application, such as a printer, camera or scanner. The core is configured before synthesis to respond to all standard USB hub/host commands. Up to four endpoints are supported. The ATUSBFUNC-SS7211 interface to the application consists of an application interface and a FIFO interface. There are no user programmable registers in this core. The internal state machine and control logic decode the hub/host commands and control the data transfers across the FIFO interface. Control signals are used to transfer error and status information to or from the application.
