ATS-52230G-C2-R0, US $ 3.28-6.18, ATS-52230G-C2-R0 DataSheet download, circuit diagram from SeekIC.com

See larger image

SeekIC No. : 003445080 Detail

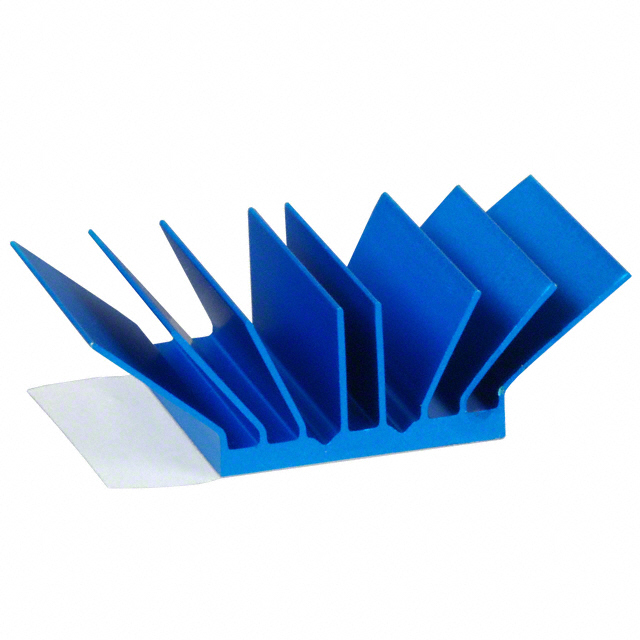

ATS-52230G-C2-R0: HEAT SINK 23MM X 23MM X 12.5MM

ATS-52230G-C2-R0 Data Sheet

US $ 3.28~6.18 / Piece | Get Latest Price

Part Number:: ATS-52230G-C2-R0
Mfg:
Supply Ability:: 5000

Price Break

Qty
0~1
1~10
10~100
100~500
500~1000

Unit Price
$6.18
$4.52
$3.74
$3.44
$3.28

Processing time
15 Days
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/11/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

ATS-1 evaluate
DescriptionATS-1 Series 3.9 mm Crystal - Hermetically sealed AT-strip crystals for incorporation i...
ATS-1038-C1-R0 evaluate
US $4.62 - 8.07 / Piece

HEATSINK 40X38X10MM NYLONPUSHPIN
ATS-1038-C2-R0 evaluate
US $4.62 - 8.07 / Piece

HEATSINK 40X38X10MM BRASSPUSHPIN

Product Details

Quick Details

Capacitance :	6 pF	Series:	maxiFLOW
Manufacturer:	Advanced Thermal Solutions Inc	Type:	Top Mount
Package Cooled:	BGA	Attachment Method:	Thermal Tape, Adhesive (Included)
Shape:	Square, Angled Fins	Length:	0.906" (23.01mm)
Width:	0.906" (23.01mm)	Diameter:	-
Height Off Base (Height of Fin):	0.492" (12.50mm)	Power Dissipation @ Temperature Rise:	-
Thermal Resistance @ Forced Air Flow:	6.7°C/W @ 200 LFM	Thermal Resistance @ Natural:	-
Material:	Aluminum

Description

Diameter: -
Power Dissipation @ Temperature Rise: -
Material: Aluminum
Package Cooled: BGA
Thermal Resistance @ Natural: -
Type: Top Mount
Attachment Method: Thermal Tape, Adhesive (Included)
Series: maxiFLOW
Manufacturer: Advanced Thermal Solutions Inc
Shape: Square, Angled Fins
Height Off Base (Height of Fin): 0.492" (12.50mm)
Material Finish: Blue Anodized
Length: 0.906" (23.01mm)
Width: 0.906" (23.01mm)
Thermal Resistance @ Forced Air Flow: 6.7°C/W @ 200 LFM

Parameters:

Technical/Catalog Information	ATS-52230G-C2-R0
Vendor	Advanced Thermal Solutions Inc
Category	Thermal Management
Attachment Method	Thermal Tape, Adhesive (Included)
Height	0.49" (12.5mm)
Material	Aluminum
Package Cooled	Assorted (BGA, LGA, CPU, ASIC...)
Power Dissipation @ Temperature Rise	-
Thermal Resistance @ Forced Air Flow	6.7°C/W @ 200 LFM
Outline	23.00mm x 23.00mm
Thermal Resistance @ Natural	-
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	ATS 52230G C2 R0 ATS52230GC2R0 ATS1117 ND ATS1117ND ATS1117
