ATR0610-PQQ

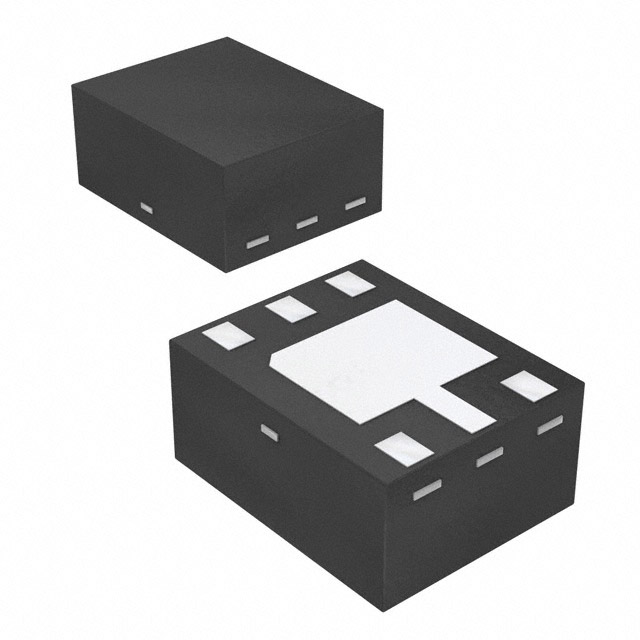

The ATR0610-PQQ is one member of the ATR0610 family which is designed for use in GPS applications.It uses a SiGe HBT die. The IC is 50- matched on the output allowing the device to be used with minimal external circuitry.Its RF performance meets the requirements for products designed to the GPS standard.It also gives excellent RF performance with low current consumption resulting in longer battery life times. The package has a small 1.6 mm X 2.0 mm footprint to allow use in compact GPS receiver design.

Features of the ATR0610-PQQ are:(1)low noise figure;(2)high small signal gain;(3)single +2.7 V operation;(4)power-up control;(5)50 output;(6)uncondit-ionally stable.And it has three points of benefits:(1)low power consumption < 10 mW;(2)very small, PLLP6 package (1.6 mm * 2.0 mm);(3)few external components.

The absolute maximum ratings of the ATR0610-PQQ are:(1)supply voltage:-0.3 to +3.7 V;(2)power-up voltage:-0.3 to +3.7 V;(3)input power:-5 dBm;(4)operating temperature:-40 to +85 °C;(5)storage temperature:-55 to +125 °C;(6)thermal resistance:TBD K/W.If you want to know more information such as the electrical characteristics about the ATR0610-PQQ,please download the datasheet in www.seekdatasheet.com or www.chinaicmart.com.
