8-bit Microcontrollers (MCU) AVR 16K FLASH 512B EE 1K SRAM 5V

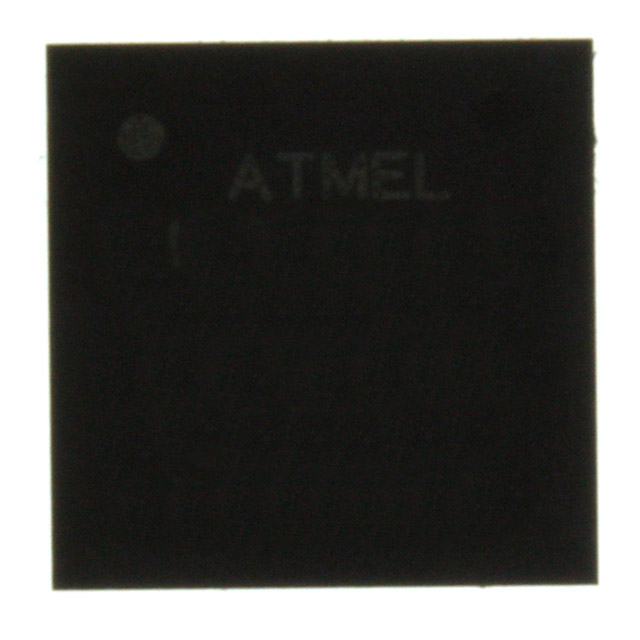

ATMEGA169PV-8MU: 8-bit Microcontrollers (MCU) AVR 16K FLASH 512B EE 1K SRAM 5V
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Core : | AVR | Processor Series : | ATMEGA16x |
Data Bus Width : | 8 bit | Maximum Clock Frequency : | 8 MHz |
Program Memory Size : | 16 KB | Data RAM Size : | 1 KB |
On-Chip ADC : | Yes | Operating Supply Voltage : | 1.8 V to 5.5 V |
Operating Temperature Range : | - 40 C to + 85 C | Package / Case : | MLF-64 |
Mounting Style : | SMD/SMT |
The ATMEGA169PV-8MU is one member of the ATMEGA169 family which is designed as the low-power CMOS 8-bit microcontroller that provides the following features:(1)on-chip analog comparator;(2)programmable watchdog timer with separate on-chip oscillator;(3)8K bytes of in-system self-programmable flash program memory;(4)external and internal interrupt sources;(5)23 programmable I/O lines;(6)fully static operation;(7)130 powerful instructions-most single-clock cycle execution;(8)data retention: 20 years at 85°C/100 years at 25°C;(9)five sleep modes: idle, ADC noise reduction, power-save, power-down, and standby;(10)high-performance, low-power AVR 8-bit microcontroller.
The absolute maximum ratings of the ATMEGA169PV-8MU can be summarized as:(1)operating temperature:-55°C to +125°C;(2)storage temperature:-65°C to +150°C;(3)voltage on any pin except RESET with respect to ground:-0.5V to Vcc+0.5V;(4)voltage on RESET with respect to ground:-0.5V to +13.0V;(5)maximum operating voltage:6.0 V;(6)DC current per I/O pin:40.0 mA;(7)DC current Vcc and GND pins:400.0 mA.
The external clock drive of the ATMEGA169PV-8MU can be summarized as:(1)oscillator frequency:0 to 16 MHz;(2)clock period:1000 or 62.5 ns;(3)high time: 400 or 25 ns;(4)low time:400 or 25 ns;(5)rise time:2.0 or 1.6 us;(6)change in period from one clock cycle to the next:2%. If you want to know more inform-ation such as the electrical characteristics about the ATMEGA169PV-8MU, please download the datasheet in www.seekic.com or www.chinaicmart.com .
Technical/Catalog Information | ATMEGA169PV-8MU |
Vendor | Atmel |
Category | Integrated Circuits (ICs) |
Program Memory Size | 16K x 8 |
RAM Size | 1K x 8 |
Number of I /O | 54 |
Package / Case | 64-QFN |
Speed | 8MHz |
Controller Series | ATmega |
Oscillator Type | Internal |
Packaging | Tray |
Program Memory Type | FLASH |
EEPROM Size | 512 x 8 |
Core Processor | AVR |
Data Converters | A/D 8x10b |
Core Size | 8-Bit |
Operating Temperature | -40°C ~ 85°C |
Connectivity | SPI, UART/USART, USI |
Peripherals | Brown-out Detect/Reset, LCD, POR, PWM, WDT |
Voltage - Supply (Vcc/Vdd) | 1.8 V ~ 5.5 V |
Lead Free Status | Lead Free |
RoHS Status | RoHS Compliant |
Other Names | ATMEGA169PV 8MU ATMEGA169PV8MU |
