ATF750LVC

Features:

• 3.0V to 3.6V Operating Range
• Advanced, High-speed, Electrically-erasable Programmable Logic Device
        Superset of 22V10
        Enhanced Logic Flexibility
        Architecturally Compatible with ATV750B and ATV750 Software and Hardware
• D- or T-type Flip-flop
• Product Term or Direct Input Pin Clocking
• 15 ns Maximum Pin-to-pin Delay with 3V Operation
• Highest Density Programmable Logic Available in 24-pin Package
        Advanced Electrically-erasable Technology
        Reprogrammable
        100% Tested
• Increased Logic Flexibility
        42 Array Inputs, 20 Sum Terms and 20 Flip-flops
• Enhanced Output Logic Flexibility
        All 20 Flip-flops Feed Back Internally
        10 Flip-flops are also Available as Outputs
• Programmable Pin-keeper Circuits
• Dual-in-line and Surface Mount Package in Standard Pinouts
• Commercial and Industrial Temperature Ranges
• 20-year Data Retention
• 2000V ESD Protection
• 1000 Erase/Write Cycles

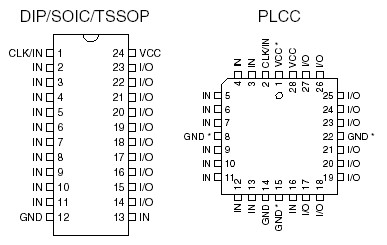

Pinout




Specifications

Temperature Under Bias................................... -40°C to +85
Storage Temperature ..................................... -65°C to +150
Voltage on Any Pin with
Respect to Ground ..........................................-2.0V to +4.6V⁽¹⁾
Voltage on Input Pins
with Respect to Ground
During Programming......................................-2.0V to +14.0V⁽¹⁾
Programming Voltage with
Respect to Ground ........................................-2.0V to +14.0V⁽¹⁾


Description

The Atmel "750" architecture is twice as powerful as most other 24-pin programmable logic devices. Increased product terms, sum terms, flip-flops and output logic configurations translate into more usable gates. High-speed logic and uniform, predictable delays guarantee fast in-system performance. The ATF750LVC is a high-performance
