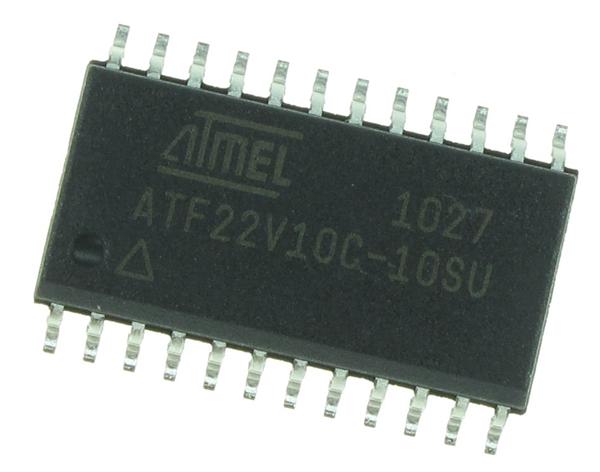

ATF22V10C-10SU

Supply Current :
Operating Supply Voltage : 5 V
Maximum Operating Temperature : + 85 C
Minimum Operating Temperature : - 40 C
Delay Time : 10 ns
Number of Macrocells : 10
Number of Programmable I/Os : 10
Logic Family : ATF22V10C
Package / Case : SOIC-24
Maximum Operating Frequency : 125 MHz


Pinout




Description

The ATF22V10C-10SU is designed as one kind of high-performance CMOS (electrically-erasable) programmable logic device (PLD) that utilizes Atmel's proven electrically-erasable flash memory technology. And this device incorporates a superset of the generic architectures, which allows direct replacement of the 22V10 family and most 24-pin combinatorial PLDs.

Features of the ATF22V10C-10SU are:(1)Industry-standard Architecture - Low-cost, Easy-to-use Software Tools; (2)High-speed, Electrically Erasable Programmable Logic Devices - 5 ns Maximum Pin-to-pin Delay; (3)CMOS- and TTL-compatible Inputs and Outputs; (4)Pin-controlled Standby Power (10 A Typical); (5)Dual Inline and Surface Mount Packages in Standard Pinouts; (6)PCI-compliant; (7)True Input Transition Detection "Z" and "QZ" Version; (8)Green Package Options (Pb/Halide-free/RoHS Compliant) Available.

The absolute maximum ratings of the ATF22V10C-10SU can be summarized as:(1)Temperature Under Bias: -40°C to +85°C;(2)Storage Temperature: -65°C to +150°C;(3)Voltage on Input Pins with Respect to Ground During Programming: -2.0 V to +14.0 V;(4)Voltage on Any Pin with Respect to Ground: -2.0 V to +7.0 V;(5)Programming Voltage with Respect to Ground: -2.0 V to +14.0 V. If you want to know more information about the ATF22V10C-10SU, please download the datasheet in www.seekic.com or www.chinaicmart.com .

Parameters:

Technical/Catalog Information	ATF22V10C-10SU
Vendor	Atmel
Category	Integrated Circuits (ICs)
Speed	10ns
Package / Case	24-SOIC (7.5mm Width)
Voltage - Input	5V
Programmable Type	EE PLD
Number of Macrocells	10
Packaging	Tube
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	ATF22V10C 10SU ATF22V10C10SU
