ATF1502ASL-25JC44

Supply Current :
Memory Type : EEPROM
Number of Product Terms per Macro : 40
Number of Programmable I/Os : 32
Package / Case : PLCC-44
Operating Supply Voltage : 5 V
Maximum Operating Frequency : 60 MHz
Delay Time : 25 ns
Number of Macrocells : 32
Minimum Operating Temperature : 0 C
Maximum Operating Temperature : + 70 C


Features:

High-density, High-performance, Electrically-erasable Complex Programmable Logic Device
32 Macrocells
5 Product Terms per Macrocell, Expandable up to 40 per Macrocell
44Pins
7.5 ns Maximum Pin-to-pin Delay
Registered Operation up to 125 MHz
Enhanced Routing Resources
In-System Programmability (ISP) via JTAG
Flexible Logic Macrocell
D/T Latch Configurable Flip-flops
Global and Individual Register Control Signals
Global and Individual Output Enable
Programmable Output Slew Rate
Programmable Output Open Collector Option
Maximum Logic Utilization by Burying a Register with a COM Output
Advanced Power Management Features
Automatic10AStandbyfor"L"Version
Pin-controlled 1 mA Standby Mode
Programmable Pin-keeper Inputs and I/Os
Reduced-power Feature per Macrocell
Available in Commercial and Industrial Temperature Ranges
Advanced EEPROM Technology
100% Tested
Completely Reprogrammable
10,000 Program/Erase Cycles
20-year Data Retention
2000V ESD Protection
200 mA Latch-up Immunity
JTAG Boundary-scan Testing to IEEE Std. 1149.1-1990 and 1149.1a-1993 Supported
PCI-compliant
Security Fuse Feature

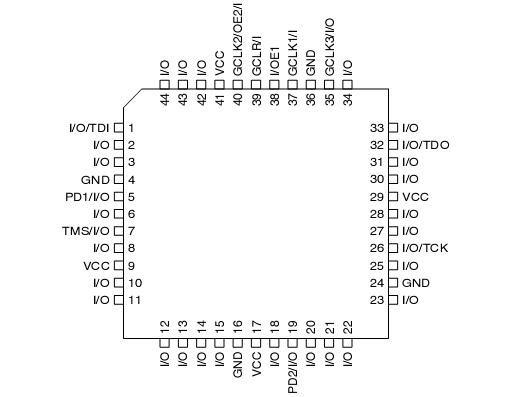

Pinout




Specifications

Temperature Under Bias................................ -40°C to +85°C
Storage Temperature.................................. -65°C to +150°C
Voltage on Any Pin with
Respect to Ground .........................................-2.0V to +7.0V⁽¹⁾
Voltage on Input Pins
with Respect to Ground
During Programming.....................................-2.0V to +14.0V⁽¹⁾
Programming Voltage with
Respect to Ground .......................................-2.0V to +14.0V⁽¹⁾

Description

The ATF1502ASL-25JC44 is a high-performance, high-density complex programmable logic device (CPLD) that utilizes Atmel's proven electrically-erasable technology. With 32 logic macrocells and up to 36 inputs, it easily integrates logic from several TTL, SSI, MSI, LSI and classic PLDs. The ATF1502AS's enhanced routing switch matrices increase usable gate count and the odds of successful pin-locked design modifications.

The ATF1502ASL-25JC44 has up to 32 bi-directional I/O pins and four dedicated input pins, depending on the type of device package selected. Each
dedicated pin can also serve as a global control signal, register clock, register reset or output enable. Each of these control signals can be
selected for use individually within each macrocell.

Parameters:

Technical/Catalog Information	ATF1502ASL-25JC44
Vendor	Atmel
Category	Integrated Circuits (ICs)
Programmable Type	In System Programmable (min 10K program/erase cycles)
Number of Macrocells	32
Number of I /O	32
Number of Logic Blocks/Elements	-
Operating Temperature	0°C ~ 70°C
Package / Case	44-PLCC
Features	-
Voltage	4.75 V ~ 5.25 V
Memory Type	EEPROM
Delay Time tpd(1) Max	25.0nS
Packaging	Tube
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	ATF1502ASL 25JC44 ATF1502ASL25JC44
