ATA6025

Features:

• Watchdog Adjustable
• Over- and Undervoltage Detection of Vcc = 5 V
• Standby Modes On/Off via Ignition Pin VKL15
• Internal Time Delay for Output Signal
• Push-pull Output Driver
• Interference and Damage Protection According to ISO/CD 7637
• ESD Protection

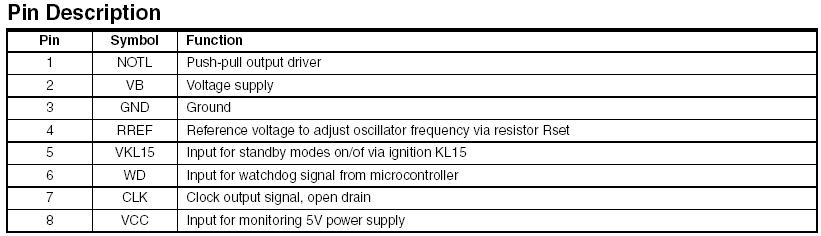

Pinout




Specifications

Parameters	Symbol	Min.	Max.	Unit
Supply voltage	VVB	-0.3	+40	V
Voltage at pins VCC, WD	VVCC, VWDI	-0.3	+30	V
Voltage at pins RREF, CLK	VRREF, VCLK	-0.5	+6	V
Voltage at pin NOTL	VNOTL	-0.3	+22	V
Voltage at pin KL15 (in series with external resistor of 50 k 1%)	VKL15	-0.1	+40	V
Maximum current at pin VCC	IVCC	-100	+0.1	mA
Maximum current at pin VB	IVB	-10	+10	mA
Maximum current in pins CLK, RREF, VKL15,NOTL		-100	+100	mA
Maximum current at pin WD	IWD	-1	+1	mA
ESD classification HBM ESD S.5.1	all pins	2000		V
ESD classification MM JEDEC A115A	all pins	200		V
Power dissipation	PV		300	mW
Chip temperature	TJ	-40	+150
Operating ambient temperature	Tamb	-40	+125
Storage temperature	TStg	-55	+150

Description

The ATA6025 is a monolithic circuit based on Atmel's smart power BCD60-III technology.It is a universal IC for monitoring basic functions of an automotive application. It is possible to monitor the battery voltage (VKL15) and an external 5 V voltage regulator. With the independent watchdog the correct function of a microcontroller can be observed. If a failure occurs, the output NOTL switches to high after a time delay. During standby mode the current consumption is reduced to a minimum.
