ATA-120

Features:

• HIGH OUTPUT POWER CAPABILITY
• SINGLE SUPPLY (+7.5V to +24V)
• THD+N < 0.05% @ 1W, 8Ω
• HIGH EFFICIENCY, > 90% @ 4Ω, 20W
• LOW QUIESCENT CURRENT, 13mA
• LOW NOISE (190µV typ.)
• POP ELIMINATION AT STARTUP AND SHUTDOWN
• BUILT-IN THERMAL PROTECTION
• INTEGRATED SHORT CIRCUIT PROTECTION
• 180mΩ MOSFET SWITCHES
• MUTE / STANDBY MODE
• SMALL SMD PACKAGE IS



Application

• TELEVISIONS
• HOME AUDIO MINI-SYSTEMS
• FLAT PANEL MONITORS
• MULTIMEDIA SPEAKERS
• SURROUND SOUND DVD SYSTEMS

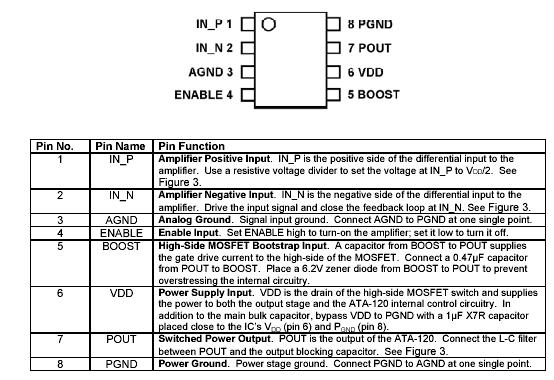

Pinout




Specifications

SYMBOL	PARAMETER	MIN	TYP	MAX	UNIT
VDD	Supply Voltage			26	V
VBOOST	Bootstrap Voltage	VOUT-0.3		VOUT+6.5	V
VENABLE	Enable Voltage	-0.3		6.0	V
VOUT	Output Switch	-1		VDD+1	V
VIN_P	Positive Input	-1		VDD+1	V
VIN_N	Negative Input	-1		VDD+1	V
-	Analog GND to Power GND	-0.3		0.3	V
Tj	Junction Temperature			150	°C
TLEADS	Lead Temperature			260	°C
TS	Storage Temperature	-65		150	°C

Description

The ATA-120 Class-D Audio Amplifier is a fully integrated monolithic audio amplifier that can provide audio power up to 20 watts @ 10% THD into a 4Ω speaker.

The ATA-120 incorporates a single ended output structure with builtin short circuit and overtemperature protection. This low noise, high performance device delivers the excellent audio quality of a class A/B amplifier while still achie-ving class-D efficiency greater than 90%.
