AT88SC0808C

Features:

• One of a Family of Devices with User Memories from 1 Kbit to 1 Mbit
• 8-Kbit (1-Kbyte) EEPROM User Memory
Eight 128-byte (1-Kbit) Zones
Self-timed Write Cycle (5 ms)
Single Byte or 16-byte Page Write Mode
Programmable Access Rights for Each Zone
• 2-Kbit Configuration Zone
37-byte OTP Area for User-defined Codes
160-byte Area for User-defined Keys and Passwords
• High Security Features
64-bit Patented Dynamic Symetric Mutual Authentication Protocol (Under Exclusive Patent License from ELVA)
Encrypted Checksum
Stream Encryption
Four Key Sets for Authentication and Encryption
Eight Sets of Two 24-bit Passwords
Anti-tearing Function
Voltage and Frequency Monitor
• Smart Card Features
ISO 7816 Class A (5V) or Class B (3V) Operation
ISO 7816-3 Asynchronous T = 0 Protocol
Multiple Zones, Key Sets and Passwords for Multi-application Use
Synchronous 2-wire Serial Interface for Faster Device Initialization
Programmable 8-byte Answer-To-Reset Register
ISO 7816-2 Compliant Modules
• Embedded Application Features
Low Voltage Operation: 2.7V to 5.5V
Secure Nonvolatile Storage for Sensitive System or User Information
2-wire Serial Interface
1.5 MHz Compatibility for Fast Operation
Standard 8-lead Plastic Packages
Same Pinout as 2-wire Serial EEPROMs
• High Reliability
Endurance: 100,000 Cycles
Data Retention: 10 years
ESD Protection: 4,000V min



Application

The AT88SC0808C provides high security, low cost, and ease of implementation without the need for a micropro-cessor operating system. The embedded cryptographic engine provides for dynamic,symmetricmutual authenti-cation between the device and host, as well as performing stream encryption for all data and passwords exch-anged between the device and host. Up to four unique key sets may be used for these operations.The AT88SC0-808C offers the ability to communicate with virtually any smart card reader using the asynchronous T = 0 protocol defined in ISO 7816-3.

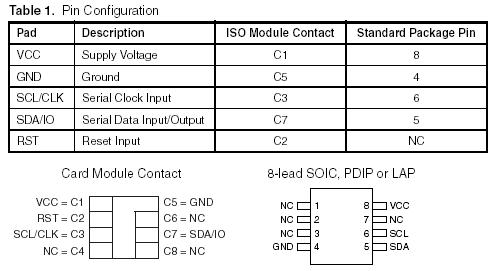

Pinout




Description

The AT88SC0808C member of the CryptoMemory family is a high-performance secure memory providing 8 Kbits of user memory with advanced security and cryptographic features built in. The user memory is divided into 8 128-byte zones, each of which may be individually set with different security access rights or combined together to provide space for 1 to 4 data files.
