AT86RF535A

Features: • Single-chip WiMax Transceiver @ 3.5GHz• Fully Differential Design• Low-IF Receiver Architecture; Requires No External Filters• Self Calibration Mode for RX / TX Filters• Supports Channel Bandwidths of 1.75, 3.5, and 7MHz• Modulation up to 64QAM•...

product image

AT86RF535A Picture
See larger image
SeekIC No. : 004290706 Detail

AT86RF535A: Features: • Single-chip WiMax Transceiver @ 3.5GHz• Fully Differential Design• Low-IF Receiver Architecture; Requires No External Filters• Self Calibration Mode for RX / TX F...

AT86RF535A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
AT86RF535A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/7/15

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Single-chip WiMax Transceiver @ 3.5GHz
• Fully Differential Design
• Low-IF Receiver Architecture; Requires No External Filters
• Self Calibration Mode for RX / TX Filters
• Supports Channel Bandwidths of 1.75, 3.5, and 7MHz
• Modulation up to 64QAM
• Ultra-fast Fractional-N Synthesizer
• Sensitivity < -68dBm @ 64-QAM, CR=¾, 7MHz BW
• Phase Noise Synthesizer: 0.8° (-37dBc)
• Low Supply Voltage: 2.7V
• TX Output PRF: -12 dBm
• RX/TX Operating Current: 200/320mA Typical
• Low Power Off Current: < 20A Typical
• 56-lead QFN Package
• Low External Component Count of only a few Passives


Application

• 3.5 GHz Band Wireless Communication Devices
• IEEE® 802.16-2004 Radios
• Supports OFDM up to 64QAM


Pinout

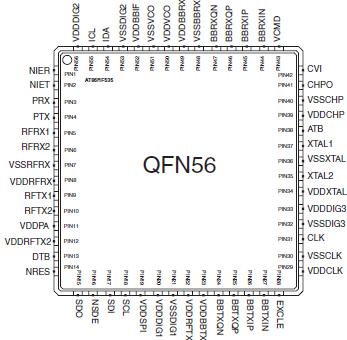

Connection Diagram


Description

Atmel's AT86RF535A is a fully integrated, low cost RF 3.5GHz Low-IF conversion transceiver for WiMax applications. It
combines excellent RF performance with low current consumption at the smallest die size. The AT86RF 535A chip is fabricated on the advanced AT46000 SiGe BiCMOS process. The transceiver combines LNA, PA driver, RX/TX mixer, RX/TX filters, VCO, Synthesizer, RX Gain control, and TX Power control, all fully digital controlled. The number of external components is limited to only a few devices.
