AT83C51SND1C

Features:

• MPEG I/II-Layer 3 Hardwired Decoder
Stand-alone MP3 Decoder
48, 44.1, 32, 24, 22.05, 16 kHz Sampling Frequency
Separated Digital Volume Control on Left and Right Channels (Software Control Using 31 Steps)
Bass, Medium, and Treble Control (31 Steps)
Bass Boost Sound Effect
Ancillary Data Extraction
"CRC Error" and "MPEG Frame Synchronization" Indicators
• Programmable Audio Output for Interfacing With Common Audio DAC
PCM Format Compatible
I2S Format Compatible
• 8-bit MCU C51 Core Based (FMAX= 20 MHz)
• 2304 Bytes of Internal RAM
• 64K Bytes of Code Memory
Flash: AT89C51SND1C, ROM: AT83C51SND1C
• 4K Bytes of Boot Flash Memory (AT89C51SND1C)
ISP: Download from USB or UART to Any External Memory Cards
• USB Rev 1.1 Controller
"Full Speed" Data Transmission
• Built-in PLL
MP3 Audio Clocks
USBClock
• MultiMedia Card™ Interface Compatibility
• Atmel DataFlash^® SPI Interface Compatibility
• IDE/ATAPI Interface
•2 Channels 10-bit ADC, 8 kHz (8-True Bit)
Battery Voltage Monitoring
Voice Recording Controlled by Software
• Up to 44 bits of General-purpose I/Os:
4-bit Interrupt Keyboard Port for a 4 x n Matrix
SmartMedia™ Software Interface
• Standard Two 16-bit Timers/Counters
• Hardware Watchdog Timer
• Standard Full Duplex UART with Baud Rate Generator
• Two Wire Interface (TWI) Master and Slave Modes Controller
• SPI Master and Slave Modes Controller
• Power Management
Power-on Reset
Software Programmable MCU Clock
Idle Mode, Power-down Mode
• Operating Conditions:
3V, ±10%, 25 mA Typical Operating at 25°C
Temperature Range: -40°C to +85°C
• Packages
TQFP80, PLCC84 (Development Board)
Dice



Application

• MP3 Player
• PDA, Camera, Mobile Phone MP3
• Car Audio/Multimedia MP3
• Home Audio/Multimedia MP3

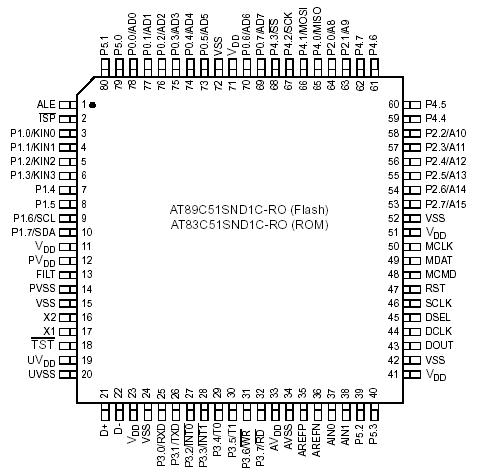

Pinout




Specifications

Storage Temperature ............................ -65 to +150°C Voltage on any other Pin to VSS .............. -0.3 to +4.0 V IOL per I/O Pin ....................................................... 5 mA Power Dissipation..................................................... 1 W Operating Conditions Ambient Temperature Under Bias............ -40 to +85°C VDD ...............................................................2.7 to 3.3V

*NOTICE: Stressing the device beyond the "Absolute Maximum Ratings" may cause permanent damage. These are stress ratings only. Operation beyond the"operating conditions" is not recommended and extended exposure beyond th"Operating Conditions" may affect device reliability.

Description

The AT83C51SND1C are fully integrated stand-alone hardwired MPEG I/II-Layer 3 decoders with a C51 microcon-troller core handling data flow and MP3-player control.

The AT83C51SND1C includes 64K Bytes of Flash memory and allows In-System Programming through an embedded 4K Bytes of Boot Flash Memory.

The AT83C51SND1C includes 64K Bytes of ROM memory.

The AT83C51SND1C includes 2304 Bytes of RAM memory.

The AT83C51SND1C provides all necessary features for man machine interface like timers, keyboard port, serial or parallel interface (USB, TWI, SPI, IDE), ADC input, I2S output, and all external memory interface (NAND or NOR Flash, SmartMedia, MultiMedia, DataFlash cards).
