AT83C5132

Features: • Programmable Audio Output for Interfacing with Common Audio DAC PCM Format Compatible I2S Format Compatible• 8-bit MCU C51 Core-based (FMAX= 20 MHz)• 2304 bytes of Internal RAM• 64K Bytes of Code Memory Flash: AT89C5132, ROM: AT83C5132(1)• 4K Bytes of B...

product image

AT83C5132 Picture
See larger image
SeekIC No. : 004290675 Detail

AT83C5132: Features: • Programmable Audio Output for Interfacing with Common Audio DAC PCM Format Compatible I2S Format Compatible• 8-bit MCU C51 Core-based (FMAX= 20 MHz)• 2304 bytes of In...

AT83C5132 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
AT83C5132
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/7/15

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Programmable Audio Output for Interfacing with Common Audio DAC
   PCM Format Compatible
   I2S Format Compatible
• 8-bit MCU C51 Core-based (FMAX= 20 MHz)
• 2304 bytes of Internal RAM
• 64K Bytes of Code Memory
   Flash: AT89C5132, ROM: AT83C5132(1)
• 4K Bytes of Boot Flash Memory (AT89C5132)
   ISP: Download from USB or UART to Any External Memory Cards
• USB Rev 1.1 Controller
   "Full Speed" Data Transmission
• Built-in PLL for USB Clock
• MultiMedia Card® Interface Compatibility
• Atmel DataFlash® SPI Interface Compatibility
• IDE/ATAPI Interface
• 2 Channels 10-bit ADC, 8 kHz (8-True Bit)
   Battery Voltage Monitoring
   Voice Recording Controlled by Software
• Up to 44 bits for General-purpose I/Os for
   4-bit Interrupt Keyboard Port for a 4 x n Matrix
   SmartMedia® Software Interface
• Standard Two 16-bit Timers/Counters
• Hardware Watchdog Timer
• Standard Full Duplex UART with Baud Rate Generator
• SPI Master and Slave Modes Controller
• Power Management
   Power-on Reset
   Software Programmable MCU Clock
   Idle Mode, Power-down Mode
• Operating Conditions
   3V, ±10%, 25 mA Typical Operating at 25°C
   Temperature Range: -40°C to +85°C
• Packages
   TQFP80, TQFP64, BGA81(1)
   Dice
Note: 1. Contact Atmel for availability.


Application

• Flash Recorder/Writer
• PDAs, Camera, Mobile Phone
• PC Add-on


Pinout

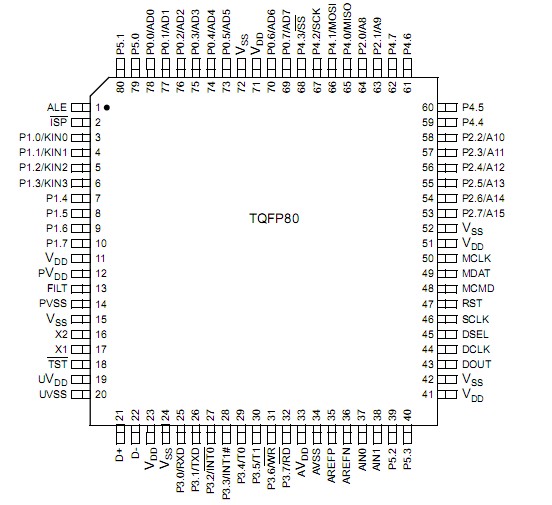

Connection Diagram


Description

The AT83C5132 devices are mass storage devices controlling data exchange between various Flash modules, HDD and CD-ROM.

The AT83C5132 includes 64K Bytes of Flash memory and allows In-System Programming through an embedded 4K Bytes of Boot Flash memory.

The AT83C5132 includes 64K Bytes of ROM memory.

The AT83C5132 includes 2304 bytes of RAM memory.

The AT83C5132 provide all the necessary features for man-machine interface like timers, keyboard port, serial or parallel interface (USB, SPI, IDE), ADC input, I2S output,and all external memory interface (NAND or NOR Flash, SmartMedia, MultiMedia,and DataFlash Cards).
