AT83C5127

Features: • Clock Controller 80C51 core with 6 clocks per instruction 8 MHz On-Chip Oscillator PLL for generating 96 MHz clock to supply CPU core, USB and Smart Card Interfaces Programmable CPU clock from 500 kHz / X1 to 48 MHz / X1• Reset Controller Power On Reset (POR) feature avoidi...

product image

AT83C5127 Picture
See larger image
SeekIC No. : 004290674 Detail

AT83C5127: Features: • Clock Controller 80C51 core with 6 clocks per instruction 8 MHz On-Chip Oscillator PLL for generating 96 MHz clock to supply CPU core, USB and Smart Card Interfaces Programmable CP...

AT83C5127 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
AT83C5127
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Clock Controller
80C51 core with 6 clocks per instruction
8 MHz On-Chip Oscillator
PLL for generating 96 MHz clock to supply CPU core, USB and Smart Card Interfaces
Programmable CPU clock from 500 kHz / X1 to 48 MHz / X1
• Reset Controller
Power On Reset (POR) feature avoiding an external reset capacitor
Power Fail Detector (PFD)
Watch-Dog Timer
• Power Management
 Two power saving modes: Idle and Power Down
Four Power Down Wake-up Sources: Smart Card Detection, Keyboard Interrupt, USB Resume, External Interrupt
Input Voltage Range: 4.5V - 5.5V
Core's Power Consumption (Without Smart Card and USB):
•30 mA Maximum Operating Current @ 48 MHz / X1
•200 µA Maximum Power-down Current @ 5.5V
• Interrupt Controller
up to 7 interrupt sources
up to 4 Level Priority
• Memory Controller
Internal Program memory: up to 16 Kbytes of ROM
Internal Data Memory : 768 bytes including 256 bytes of data and 512 bytes of XRAM
• Two 16-bit Timer/Counters
• USB 2.0 Full Speed Interface
 48 MHz DPLL
On-Chip 3.3V USB voltage regulator and transceivers
Software detach feature
7 endpoints programmable with In or out directions and ISO, Bulk or Interrupt Transfers :
•Endpoint 0: 32 Bytes Bidirectionnal FIFO for Control transfers
•Endpoints 1,2,3: 8 bytes FIFO
•Endpoints 4,5: 64 Bytes FIFO
•Endpoint 6: 2*64 bytes FIFO with Pin-Pong feature
• ISO 7816 UART Interface Fully Compliant with EMV2000, GIE-CB and WHQL Standards
Programmable ISO clock from 1 MHz to 4.8 MHz
Card insertion/removal detection with automatic deactivation sequence
Programmable Baud Rate Generator from 372 to 11.625 clock pulses
Synchronous/Asynchronous Protocols T=0 and T=1 with Direct or Inverse Convention
Automatic character repetition on parity errors
32 Bit Waiting Time Counter
16 Bit Guard Time Counter
Internal Step Up/Down Converter with Programmable Voltage Output:
•1.8V-30mA, 3V-50mA and 5V-60mA
 Current overload protection
6 kV ESD (MIL/STD 833 Class 3) protection on whole Smart Card Interface
• Alternate Smart Card Interface with CLK, IO and RST
• UART Interface with Integrated Baud Rate Generator (BRG)
• Four 12 I/O bit Ports
Up to four LED outputs with 3 level programmable current source: 2, 4 and 10 mA
Two General Purpose I/O programmable as external interrupts
• Packages
VQFP32, QFN32, Die



Pinout

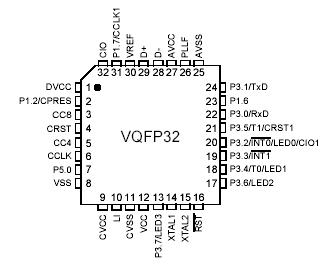

Connection Diagram


Description

AT83C5127 product is high-performance CMOS derivatives of the 80C51 8-bit microcontrollers designed for USB smart card reader applications.

The AT83C5127 is a low pin count of the AT8xC5122 and is proposed in ROM version. The ROM device is only factory programmable.
