AT76C101

Features: • Compatible with the JPEG Baseline Standard as Defined by ISO IS 109 18-1• Highly-integrated, Low-cost Single Chip Solution• Up to 40 Mbytes/sec Sustained Compression Rate• Maximum Processing Rate of 1.6 million pixels/sec• Supports 8-bit Grayscale and YUV ...

product image

AT76C101 Picture
SeekIC No. : 004290603 Detail

AT76C101: Features: • Compatible with the JPEG Baseline Standard as Defined by ISO IS 109 18-1• Highly-integrated, Low-cost Single Chip Solution• Up to 40 Mbytes/sec Sustained Compression Ra...

floor Price/Ceiling Price

Part Number:
AT76C101
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/12

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Compatible with the JPEG Baseline Standard as Defined by ISO IS 109 18-1
• Highly-integrated, Low-cost Single Chip Solution
• Up to 40 Mbytes/sec Sustained Compression Rate
• Maximum Processing Rate of 1.6 million pixels/sec
• Supports 8-bit Grayscale and YUV 4:2:2 Color Space Input and Output Formats
• Handles Images of Size up to 1024 x 1024 Pixels
• Fast DCT/IDCT Processor On-chip
• User-defined Quantization and Huffman Tables
• Support for Fast as well as Slow/Inexpensive Memories
• Provides Direct Interface for Microcontroller/Microprocessor Access



Application

The AT76C101 JPEG Processor is optimized for use in the following applications:
• Digital Cameras
• Color Printers and Plotters
• Low-cost Image Compression Systems
• Video Editing (3-4 frames/sec at CCIR 720 x 480 Image Resolution)



Pinout

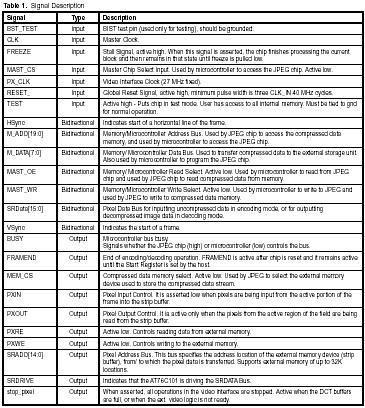

  Connection Diagram  Connection Diagram




Specifications

Symbol
Parameter
Min
Max
Unit
Conditions
Vcc
DC supply voltage
-0.3
4.6
V
Core and standard IOS
Vi
DC input voltage
-0.3
Vdd + 0.3V
V
or see +-IIk
Vo
DC output voltage
Vdd + 0.3V
V
or see +-IOk
+-IIk
DC input diode current
10
mA
Vi<-0.5V
Vi>Vdd+0.5V
+-IOK
DC output diode current
10
mA
V0<-0.5V
V0>Vdd+0.5V
IolMAX
Continuous output current
10
mA
Industrial
IohMAX
Continuous output current
10
mA
Industrial
tSH
Time of outputs shorted
5
sec
TA
Temperature range
-40
+85
C
Industrial
TSG
Storage Temperature
-65
+150
C



Description

The AT76C101 is an Image Compression/Decompression Processor that performs the JPEG Baseline Algorithm. The
system is capable of high quality compression and decompression of continues-tone color or monochrome images.

The AT76C101 performs the Discrete Cosine Transform, Quantization, and Entropy Encoding during the compre-ssion stage and carries out all inverse operations during the decompression phase. The AT76C101 uses an exter-nal SRAM as working memory, which is accessed by an onchip video interface.

The AT76C101 is designed to operate with minimum host intervention. A host processor is required to program the chip in the required operating mode, and to extract the JPEG header from the compressed bit stream during the decompression phase. Based on this information, it then initializes the internal registers. Once the chip has been initialized, the AT76C101 operates continuously until it has completed compression/decompression of a image frame.

About AT76C101,The image compression ratio is controlled by the user supplied quantization tables, which are loaded before the compression/decompression operation. Compression ratios from 1:1 to 50:1 are possible depending on the quality and storage requirements of the application.
