Features:

• Full-Frame Image Sensor 4096 x 4096 Pixels
• 11 µm x 11 µm Photo-MOS Pixel with 100% Aperture
• Image Zone: 45 x 45 mm
• Frame Readout Through One, Two or Four Outputs
• Data Rates Up to 4 x 40 MHz (Compatibility with 7, 4 Frames/Second)
• True 12-bit High Dynamic Range
• Very Low Readout Noise
• Very Low Dark Current (MPP Mode)
• Optimized Resolution and Responsivity in the 400 - 1100 nm Spectrum
• On-chip Thermometer for Each Quarter
• Additional Full-Frame Operating Modes:
4/3 Aspect Ratio: 4096 x 3072
2/1 Aspect Ratio: 4096 x 2048
Binning 2 x 2 Pixels (Format 2048 x 2048 Pixels of 22 x 22 µm)
Binning 4 x 4 Pixels (Format 1024x 1024 Pixels of 44 x 44 µm)
• On-request Frame Transfer Architecture:
2048 Active Lines, One Memory Zone with Frame Readout Through One or Two Outputs
2048 Active Lines, Two Memories Zones with Frame Readout Through Two or Four Outputs



Application

Flexibility and performance makes this device suitable for digital photography, graphic arts, medical or industrial applications and scientific analysis.


Pinout

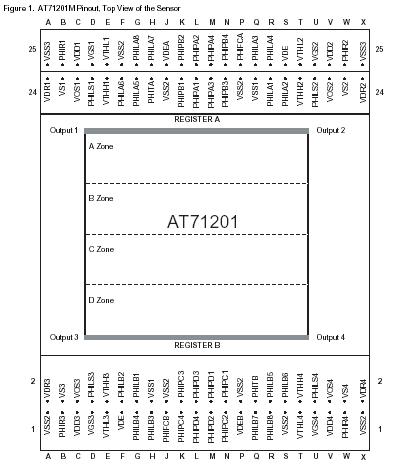

  Connection Diagram  Connection Diagram

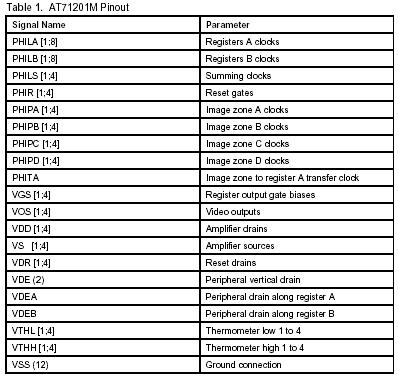

Specifications

Signal Name Parameter
Min
Max
PHILA [1;8] Registers A clocks
-0.3V
+15V
PHILB [1;8] Registers B clocks
-0.3V
+15V
PHILS [1;4] Summing clocks
-0.3V
+15V
PHIR [1;4] Reset gates
-0.3V
+15V
PHIPA [1;4] Image zone A clocks
-15V &
PHIPA [others] -15V
-15V &
PHIPA [others] +15V
PHIPB [1;4] Image zone B clocks
-15V &
PHIPB [others] -15V
-15V &
PHIPB [others] +15V
PHIPC [1;4] Image zone C clocks
-15V &
PHIPC [others] -15V
-15V &
PHIPC [others] +15V
PHIPD [1;4] Image zone D clocks
-15V &
PHIPD [others] -15V
-15V &
PHIPD [others] +15V
PHITA Image zone to register A transfer clock
-15V &
PHIPA [4] -15V
-15V &
PHIPA [4] +15V
PHITB Image zone to register B transfer clock
-15V &
PHIPB [4] -15V
-15V &
PHIPB [4] +15V
VGS [1;4] Ouput gates
-0.3V
+15V
VOS [1;4] Video outputs
-0.3V
+15V
VDD [1;4] Amplifier drains
-0.3V
+15V
VS [1;4] Amplifier sources
-0.3V
+15V
VDR [1;4] Reset drains
-0.3V
+15V
VDE Peripheral drain
-0.3V
+15V
VDEA Peripheral drain along register A
-0.3V
+15V
VDEB Peripheral drain along register B
-0.3V
+15V
VTHL [1;4] Thermometer low 1 to 4
-0.3V
+15V
VTHH [1;4] Thermometer high 1 to 4
-0.3V
+15V
VSS Ground



Description

Atmel's AT71201M is a full-frame sensor based on charge-coupled device (CCD) technology. It can be used in a wide range of applications thanks to operating mode flexibility, very high definition and high dynamic range.

The nominal photosensitive area is made up of 4096 x 4096 useful pixels and is split into four independent zones that are driven separately by four independent four-phase clock sets. Thus the sensor can be used in up to 12 main modes. The large format and high definition make the device AT71201M suitable for any application requiring precision.

The high sensitivity of the 11 x 11 µm pixels with 100% fill factor provides a large bandwidth of response with up to 1100 nm wavelength.Two serial registers and four independent output amplifiers AT71201M offer a high-frequency functionality at 40 MSPS and up to 7.4 frames per second with a high signal to noise ratio.
