Product Details

Description



Features:

Built-in brake function.
Built-in diode to absorb surge currents.
Low standby circuit current .
Wide range of operating supply voltage (4.5~13.5V).
Interfaces with the TTL logic.


Application

DVD and VCD player tray driver.

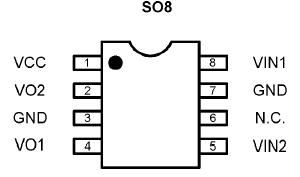

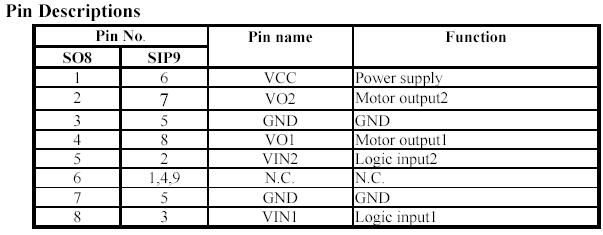

Pinout

Connection Diagram Connection Diagram


Specifications

Parameter
Symbol
Limits
Unit
Power supply voltage
VCC
13.5
V
Power dissipation
Pd
450*
mW
Operating temperature
Topr
-20~+60
Storage temperature
Tstg
-55~+125
Maximum output current IOUT
IOUT
500
mA



Description

The AT5608 is a monolithic integrated circuit designed for driving bi-directional DC motor.

AT5608 has two pins of logic input for controlling the forward/reverse and braking, which can supply an output current of up to 100mA (typical) according to the logic control.
